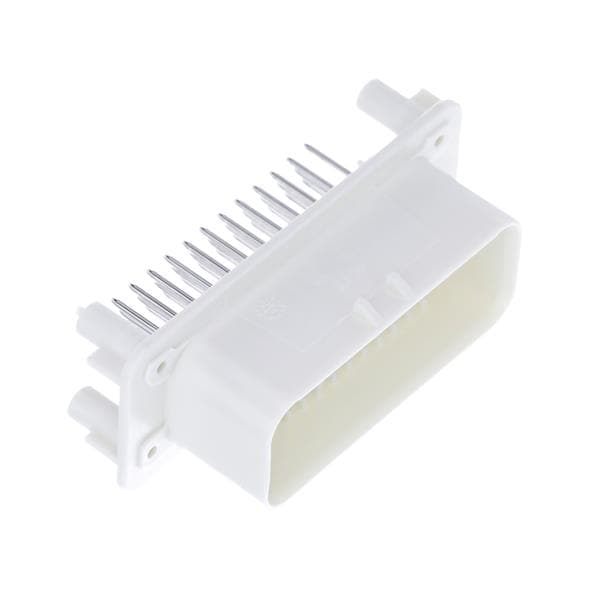

AMP Connectors - TE Connectivity 776230-2 ຫົວຂໍ້ HEADER ASSY, 35 POS ແຖວຕັ້ງ

Color: Natural

Pitch: 4 mm (0.157 in)

Width: 32.1 mm

Gender: Pin (Male)

Height: 34.25 mm

Length: 76.9 mm

Material: Plastic

Application: Power, Signal

Unit Weight: 28.700 g

Contact Type: Pin

Contact Gender: Pin (Male)

Current Rating: 8 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 3 Row

Voltage Rating: 250 VAC

Wire Gauge Max: 16 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Tin

Contact Material: Tin

Wire Gauge Range: 16 AWG to 20 AWG

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 35 Position

Description/Function: AMPSEAL, Automotive Headers

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
