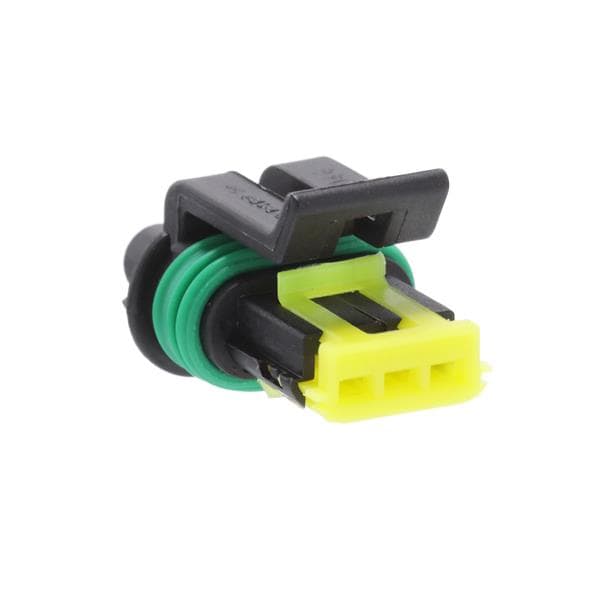

AMP Connectors - TE Connectivity 444043-1 ກອງຮັບ HSG ASSY 3POS MULTI

Color: Black

Pitch: 3.5 mm (0.138 in)

Width: 29.5 mm

Gender: Receptacle (Female)

Height: 12 mm

Length: 20.1 mm

Application: Signal

Unit Weight: 2.181 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 12 VDC

Housing Material: Polyamide (PA)

Lock Mate Feature: Integrated in Housing

Termination Style: Crimp

Number of Positions: 3 Position

Description/Function: Multilock Connector System, Housing for Female Terminals

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 30 C
