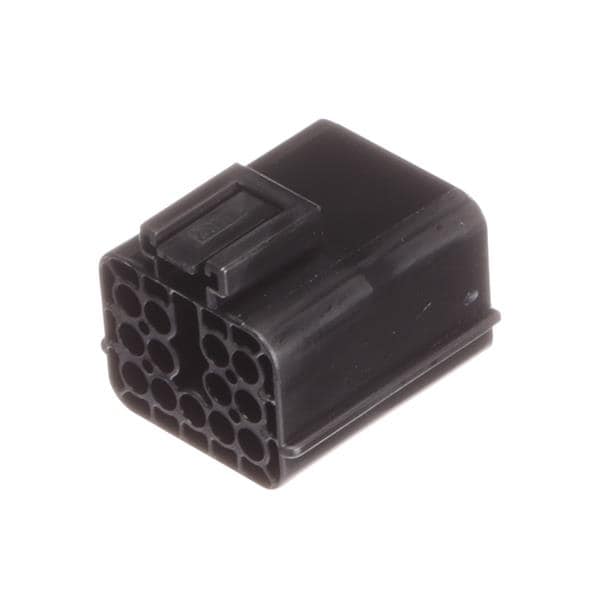

AMP Connectors - TE Connectivity 344260-1 ກອງຢູ່ຂອງ Tab 13 WAY TAB HOUSING ECONO

Color: Black

Pitch: 4.8 mm (0.189 in)

Width: 35.5 mm

Gender: Plug (Male)

Height: 31.9 mm

Length: 32.7 mm

Application: Wire to Wire

Row Spacing: 5.6 mm

Unit Weight: 12.670 g

Contact Gender: Without Pin Contacts

Current Rating: 10 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 3 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Number of Positions: 13 Position
