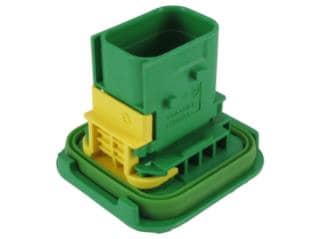

AMP Connectors - TE Connectivity 3-1564416-1 ກອງປົກຄຸມ 8POS, TAB 1.6X0.6, TAB HSG, ASSY

Color: Green

Pitch: 4 mm (0.157 in)

Width: 47.05 mm

Gender: Plug (Male)

Height: 39.8 mm

Length: 42.5 mm

Application: Signal

Row Spacing: 2.54 mm

Unit Weight: 22.173 g

Contact Type: Pin

Contact Gender: Without Pin Contacts

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 60 VDC

Wire Gauge Max: 17 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Description/Function: HDSCS, Housing for Male Terminals

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
