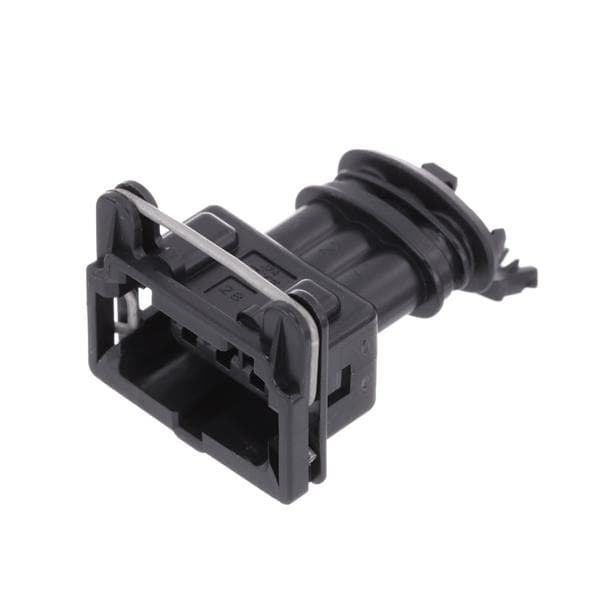

AMP Connectors - TE Connectivity 282191-1 ກອງປົກຄຸມ SP CONN W.S.L.

Color: Black

Pitch: 5 mm (0.197 in)

Width: 24.5 mm

Gender: Receptacle (Female)

Height: 38.7 mm

Length: 30.4 mm

Application: Signal

Unit Weight: 10 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 24 VDC

Wire Gauge Max: 13 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Tin

Housing Material: Polyamide (PA)

Wire Gauge Range: 13 AWG to 20 AWG

Lock Mate Feature: On the terminal

Termination Style: Crimp

Ingress Protection: IP54K

Number of Positions: 3 Position

Description/Function: Timer Connector System, Housing for Female Terminals

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 30 C
