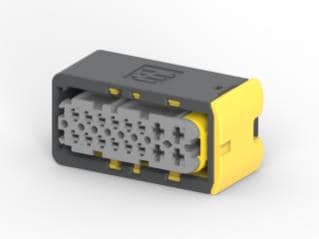

AMP Connectors - TE Connectivity 2-1564337-1 ກອງປົງ 16P MIX REC HSG ASSY

Color: Black

Pitch: 4 mm, 6 mm

Width: 25.7 mm

Gender: Receptacle (Female)

Height: 31.25 mm

Length: 67.2 mm

Application: Wire to Wire

Unit Weight: 34 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 42 VDC

Wire Gauge Max: 12 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Description/Function: HDSCS, Housing for Female Terminals

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
