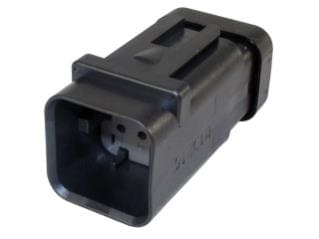

AMP Connectors - TE Connectivity 1717975-2 ການປະຊຸມຝາກ CAP ASSY,6P,ປະເພດກະແຈກກັບ,ATAC CO

Color: Black

Pitch: 4.5 mm (0.177 in)

Width: 26.8 mm

Gender: Plug (Male)

Height: 47.55 mm

Length: 24.6 mm

Material: Plastic

Application: Wire to Wire

Row Spacing: 4 mm

Unit Weight: 15.774 g

REACH - SVHC: Details

Contact Gender: Without Socket Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 VDC

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Other

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Number of Positions: 6 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
