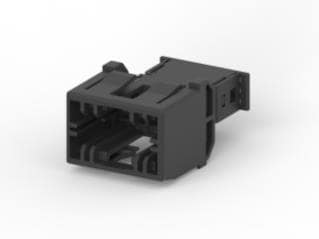

AMP Connectors - TE Connectivity 1355290-1 ກອງປົກກັນ Tab 9,5 TAB HOUSING 2POS, ສີດຳ

Color: Black

Pitch: 12.5 mm (0.492 in)

Width: 66 mm

Gender: Plug (Male)

Height: 32.1 mm

Length: 40 mm

Application: Wire to Wire

Unit Weight: 23 g

Contact Gender: Without Pin Contacts

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 28 VDC

Wire Gauge Max: 7 AWG

Wire Gauge Min: 9 AWG

Contact Plating: Tin

Housing Material: Polyamide (PA)

Wire Gauge Range: 7 AWG to 9 AWG

Locking Mechanism: On the terminal

Termination Style: Crimp

Number of Positions: 2 Position

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C
