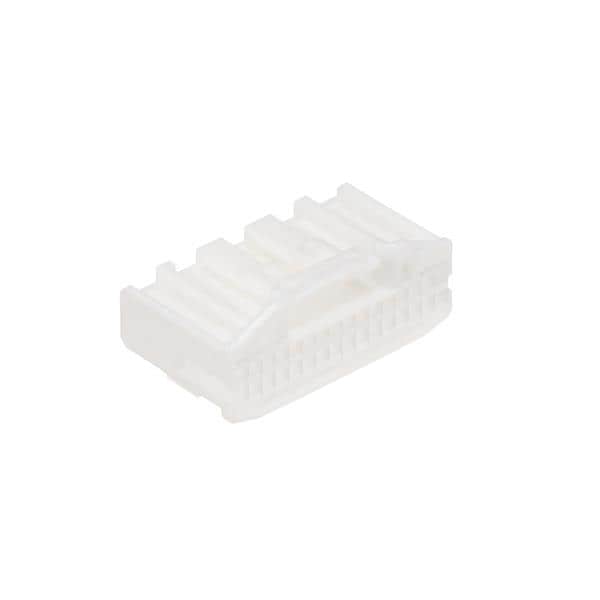

AMP Connectors - TE Connectivity 1318747-1 ຕູ້ປະກອບປລັກ 32 POS PLUG F/H .025 SERIES

Color: Natural

Pitch: 2.2 mm (0.087 in)

Width: 37.4 mm

Gender: Plug (Male)

Height: 15.8 mm

Length: 21 mm

Application: Wire to Wire

Row Spacing: 5.9 mm

Unit Weight: 4.624 g

Contact Type: Receptacle

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 12 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Locking Mechanism: On the terminal

Termination Style: Crimp

Number of Positions: 32 Position

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 30 C
