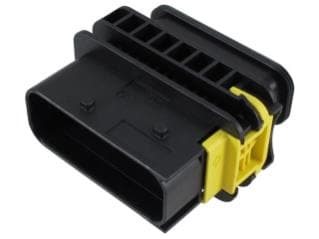

AMP Connectors - TE Connectivity 1-1564528-1 ກອງຢູ່ຂອງ Tab 16POS, ປະກອບປະສົມ, TAB HSG, ASSY

Color: Black

Pitch: 4 mm, 6 mm

Width: 27 mm

Gender: Plug (Male)

Height: 48.1 mm

Length: 52.6 mm

Application: Wire to Wire

Row Spacing: 7.55 mm

Unit Weight: 28.860 g

Contact Gender: Without Pin Contacts

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 42 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Locking Mechanism: On the terminal

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
