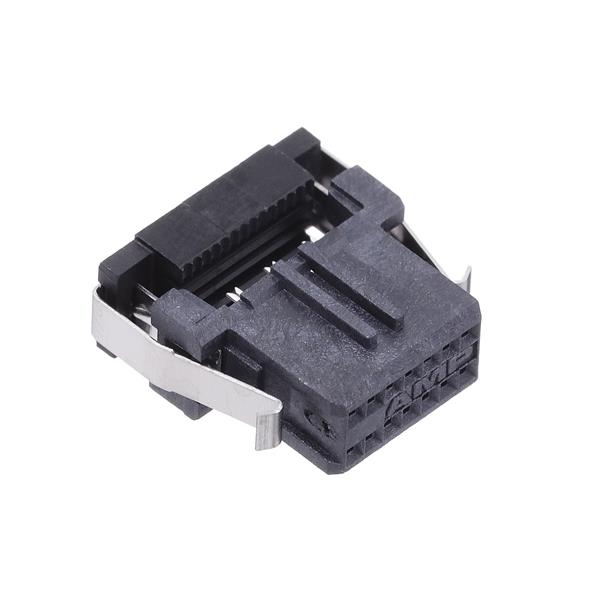

AMP Connectors - TE Connectivity 2-111196-6 ປຸ່ມຮັບ 050X100 REC 2X07P

Pitch: 1.27 mm (0.05 in)

Application: Board-to-Cable

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 1.304 g

Housing Color: Black

Latching Type: Latch

Contact Gender: Socket (Female)

Current Rating: 500 mA

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 30 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Thermoplastic (TP)

Termination Style: IDC

Number of Positions: 14 Position

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 65 C
