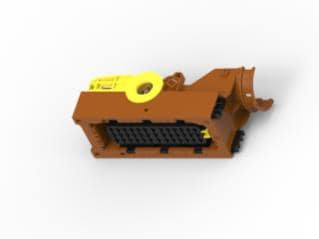

AMP Connectors - TE Connectivity 6-1718321-3 ກອງປົກຫຼັງ AMP MCP2.8 RECEPTACLE HSG.,39P

Color: Brown

Pitch: 5 mm (0.197 in)

Width: 46 mm

Gender: Receptacle (Female)

Height: 44 mm

Length: 120.5 mm

Application: Signal

Row Spacing: 5.5 mm

Unit Weight: 95.170 g

Contact Type: Socket

Current Rating: 2 A

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 3 Row

Voltage Rating: 36 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Ingress Protection: IP69K

Flammability Rating: UL 94 V-2

Number of Positions: 39 Position

Description/Function: LEAVYSEAL, Housing for Female Terminals

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 40 C
