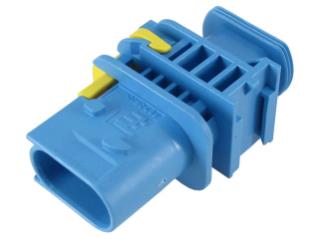

AMP Connectors - TE Connectivity 4-1670730-1 ກອງປົກຄຸມ 3POS, TAB 1.5X0.63, TAB HSG, ASSY

Color: Blue

Pitch: 4 mm (0.157 in)

Width: 47.05 mm

Gender: Plug (Male)

Height: 19 mm

Length: 27.6 mm

Application: Signal

Unit Weight: 10.554 g

Contact Type: Pin

Contact Gender: Without Pin Contacts

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 60 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Description/Function: HDSCS, Housing for Male Terminals

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
