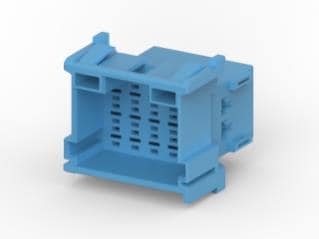

AMP Connectors - TE Connectivity 3-967628-1 ກອງປົກຫຼັງ TAB HSG 2.8MM 15POS.

Pitch: 5 mm (0.197 in)

Width: 35.45 mm

Gender: Plug (Male)

Height: 30.6 mm

Length: 32.5 mm

Application: Signal

Unit Weight: 9.700 g

Contact Type: Pin

Contact Gender: Without Pin Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 3 Row

Voltage Rating: 28 VDC

Wire Gauge Max: 13 AWG

Housing Material: Polyamide (PA)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Number of Positions: 15 Position

Description/Function: AMP MCP 2.8 Hybrid, Housinf for Male Terminals

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 40 C
