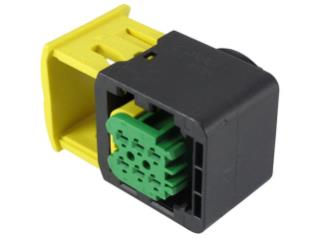

AMP Connectors - TE Connectivity 3-1418469-1 ກອງປົກຄຸມ 6POS, AMP MCP1.5K, REC. HSG, CODC

Pitch: 4 mm (0.157 in)

Width: 25.7 mm

Gender: Receptacle (Female)

Height: 31.25 mm

Length: 43 mm

Application: Signal

Row Spacing: 3 mm

Unit Weight: 17.703 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 42 VDC

Wire Gauge Max: 16 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Description/Function: HDSCS, Housing for Female Terminals

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
