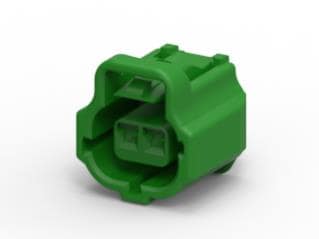

AMP Connectors - TE Connectivity 2822362-4 ຮູຊິ້ງ 070 EJ MK-2 SENSOR PLUG 2P ສີຂຽວເຂົ້າ

Color: Green

Pitch: 5 mm (0.197 in)

Width: 24 mm

Gender: Plug (Male)

Height: 27.6 mm

Length: 22 mm

Application: Signal

Unit Weight: 5.290 g

Contact Type: Socket

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 20 AWG

Wire Gauge Min: 24 AWG

Contact Plating: Tin

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 24 AWG to 20 AWG

Lock Mate Feature: Integrated in Housing

Termination Style: Crimp

Flammability Rating: UL 94 V-2

Number of Positions: 2 Position

Description/Function: Econoseal, Housing for Female Terminals

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 30 C
