Color: Gray
Pitch: 2 mm (0.079 in)
Width: 7.8 mm
Gender: Receptacle (Female)
Height: 24.9 mm
Length: 11 mm
Application: Wire to Wire
Unit Weight: 1.580 g
Contact Type: Pin
Contact Gender: Without Pin Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 20 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 22 AWG to 20 AWG
Lock Mate Feature: Integrated in Housing
Termination Style: Crimp
Flammability Rating: UL 94 V-2
Number of Positions: 7 Position

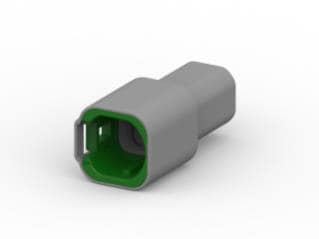

Description/Function: Multilock Connector System, Housing for Male Terminals
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
