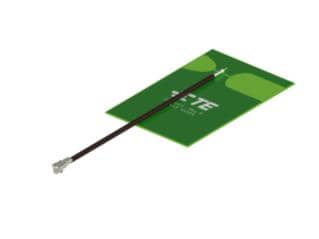

AMP Connectors - TE Connectivity 2118060-1 ເຄື່ອງຮັບສະຫນາມອະນາເຕນາພາສິບພາສິບ WLAN ສອງແຖວ

Gain: 2 dBi

VSWR: 3:1

Width: 41.24 mm

Height: 0.304 mm

Length: 29.6 mm

Impedance: 50 Ohms

Cable Type: 350 mm RF1.37 mm

Application: Cellular Application, Wireless Application

Unit Weight: 3.300 g

Cable Length: 350 mm

Power Rating: 3 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2400 MHz, 2450 MHz, 2500 MHz, 2700 MHz, 3300 MHz, 3500 MHz, 5200 MHz, 5500 MHz, 5800 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.875 GHz

Minimum Frequency: 2.3 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: IPEX MHF

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi, WiMAX

Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
