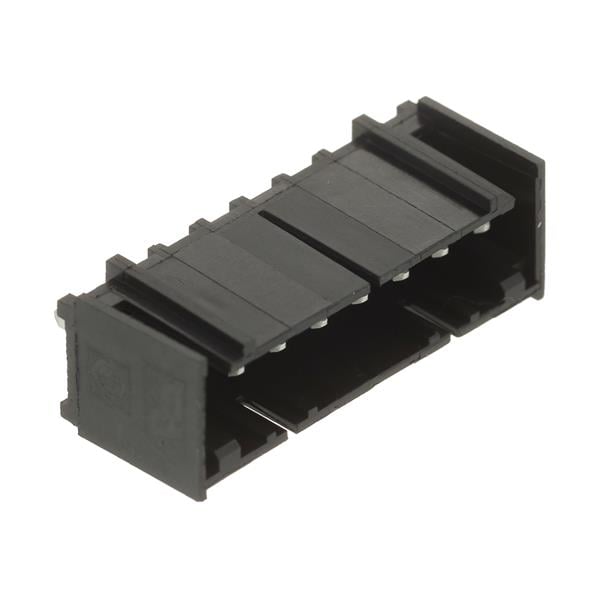

AMP Connectors - TE Connectivity 2-647123-8 Shrouded 08P MTA156 SHRD HDR ASSY SQ SN

Pitch: 3.96 mm (0.156 in)

Application: Wire-to-Board

Unit Weight: 3.511 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 7 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 600 V

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Polyester

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Termination Post Length: 3.18 mm (0.125 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
