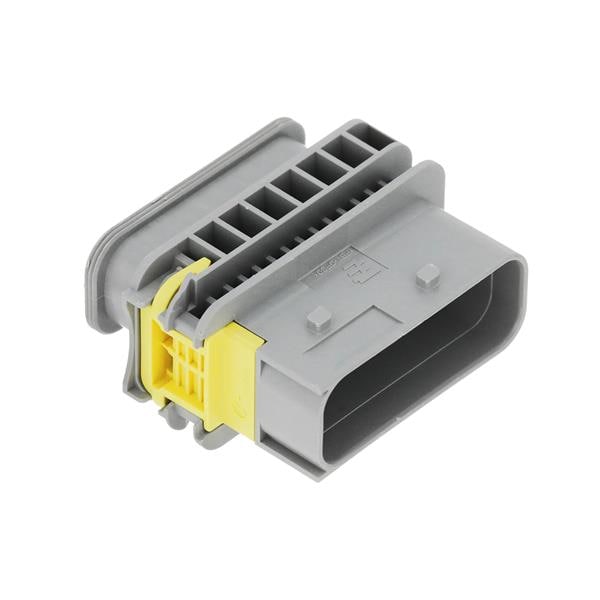

AMP Connectors - TE Connectivity 2-1564412-1 ກອງປົກ 18POS, TAB 1.6X0.6, TAB HSG, ASSY

Color: Gray

Pitch: 4 mm (0.157 in)

Width: 27 mm

Gender: Plug (Male)

Height: 46.7 mm

Length: 52.6 mm

Application: Wire to Wire

Row Spacing: 2 mm

Unit Weight: 26.498 g

Contact Type: Pin

Contact Gender: Without Pin Contacts

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 60 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 18 Position

Description/Function: HDSCS, Housing for Male Terminals

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
