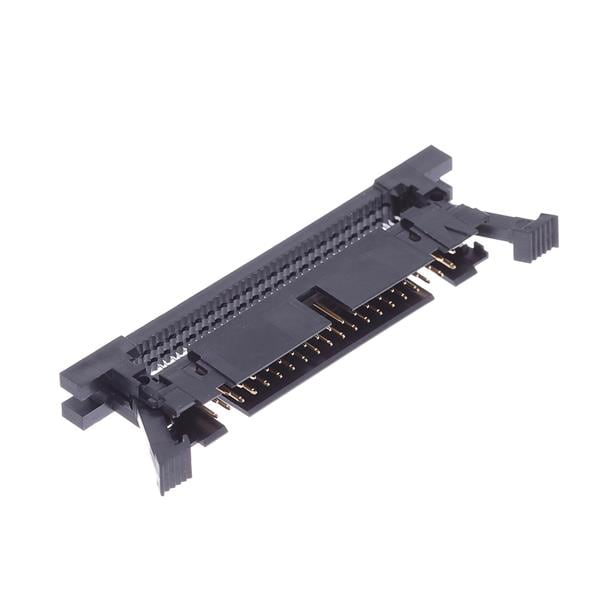

AMP Connectors - TE Connectivity 2-111506-4 Shrouded 040 UNIV I/O 30DP SLOT LTCH

Pitch: 2.54 mm (0.1 in)

Wire Gauge: 28 AWG to 26 AWG

Application: Wire-to-Wire

Row Spacing: 2 mm (0.079 in)

Unit Weight: 8.165 g

Contact Type: Tuning Fork

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Housing Gender: Plug

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Tin

Contact Material: Phosphor Bronze

Housing Material: Thermoplastic (TP)

Termination Style: IDC

Number of Positions: 40 Position

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 65 C
