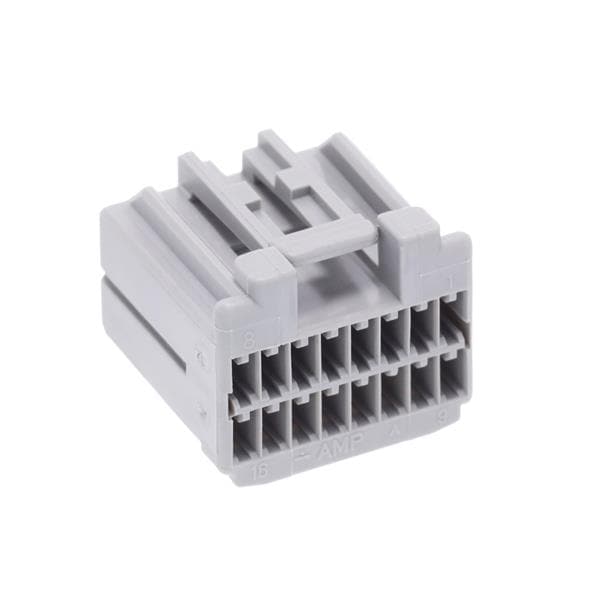

AMP Connectors - TE Connectivity 179054-6 ຮາວຊິ້ງ 040 MLC MK-2 PLUG ASSY 16P

Color: Gray

Pitch: 2.5 mm (0.098 in)

Width: 21.5 mm

Gender: Plug (Male)

Height: 18.7 mm

Length: 21 mm

Application: Wire to Board/Device

Row Spacing: 2.54 mm

Unit Weight: 4.100 g

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 12 VDC

Wire Gauge Max: 18 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Tin

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 22 AWG to 18 AWG

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Number of Positions: 16 Position

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 40 C
