Pitch: 6 mm (0.236 in)
Width: 21.3 mm
Gender: Plug (Male)
Height: 32.2 mm
Length: 32.2 mm
Application: Wire to Wire
Unit Weight: 3.606 g
Contact Type: Socket
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Voltage Rating: 24 VDC
Wire Gauge Max: 15 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Housing Material: Polyamide (PA)
Wire Gauge Range: 15 AWG to 22 AWG
Lock Mate Feature: On the terminal
Termination Style: Crimp
Flammability Rating: UL 94 V-2
Number of Positions: 3 Position

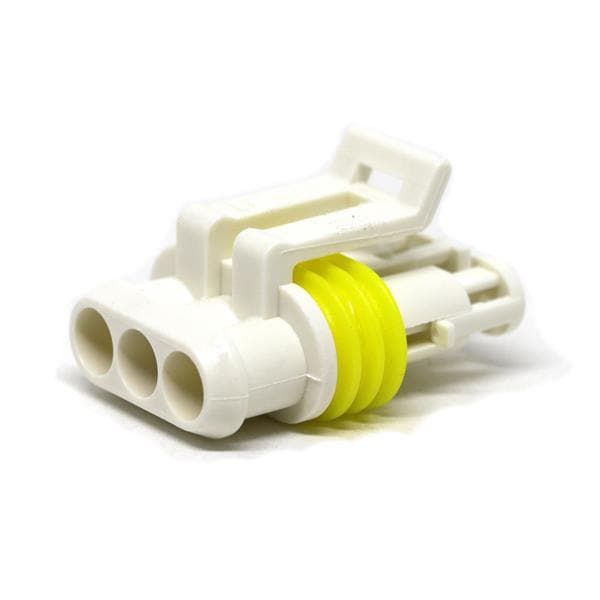

Description/Function: AMP Superseal Housing for Female Terminals
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
