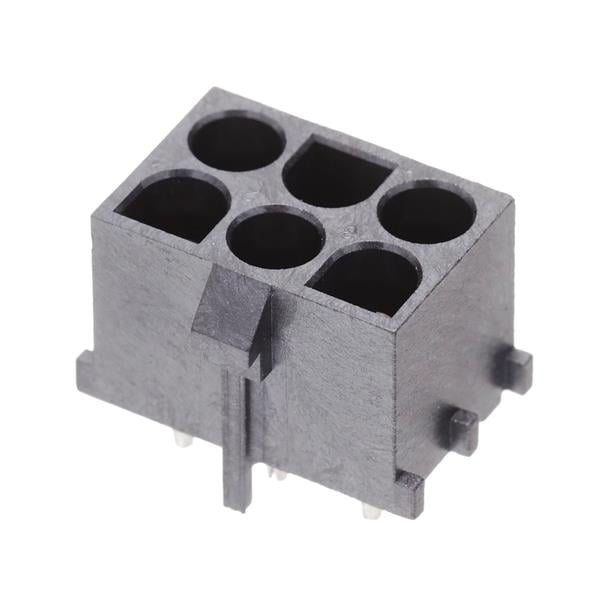

AMP Connectors - TE Connectivity 1-2213756-1 ຊຣວດເດດ 3 ບັນທຶກ 6P ອຸນຫະພູມສູງ UMNL PIN ASSM

Pitch: 6.35 mm (0.25 in)

Application: Wire-to-Board

Row Spacing: 6.35 mm (0.25 in)

Unit Weight: 5.058 g

Housing Color: Black

Contact Gender: Socket (Female)

Current Rating: 12 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 3 Row

Voltage Rating: 600 V

Contact Plating: Tin

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Termination Post Length: 3.56 mm (0.14 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
