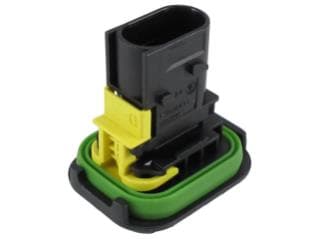

AMP Connectors - TE Connectivity 1-1703843-1 ທາບ ເຮາຊິ້ງ 3POS, TAB 1.6X0.6, TAB HSG, ASSY,

Color: Black

Pitch: 4 mm (0.157 in)

Width: 47.05 mm

Gender: Plug (Male)

Height: 29.8 mm

Length: 37.5 mm

Application: Wire to Wire

Unit Weight: 14 g

Contact Gender: Tab

Mounting Angle: Right Angle

Mounting Style: Panel Mount

Number of Rows: 1 Row

Voltage Rating: 42 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Locking Mechanism: On the terminal

Termination Style: Crimp

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
