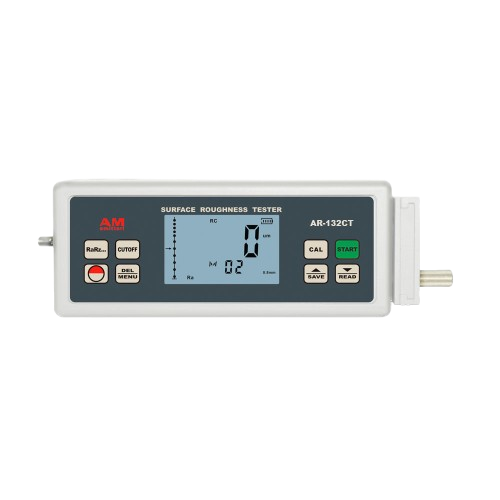

Amittari AR-132CT Concrete Surface Texture Meter (Ra/Rq: 0.005~20μm; Rz/Rt: 0.020~200μm)
Display: LCD
Parameters: Ra, Rz, Rq, Rt
Measurement Range:
Ra: 0.005~20μm
Rq: 0.005~20μm
Rz: 0.020~200μm
Rt: 0.020~200μm
Accuracy: Not more than ±10%
Fluctuation of Display: Not more than 6%
Resolution:
0.001μm if reading < 10μm
0.01μm if 10μm ≤ reading < 100μm
0.1μm if reading ≥ 100μm
Evaluation Length: 1~5L Optional
Operation Temperature: 0~50°C (32~122°F)
Operation Humidity: <80%RH
Power Supply: Lithium Ion Battery (Rechargeable)
Size: 140×57×48mm (5.5 × 2.2 × 1.9")
Weight (Including Battery): 420g (14.82oz)
Sensor:
Probe Angle: 90°
Radius: 10μm
Force: 16mN (1.6gf)
Material: Diamond
Principle: Inductance Type
Vertical Radius of Guiding Head: 48mm
Max. Driving Stroke: 17.5mm / 0.7inch
Cutoff Length: 0.25mm / 0.8mm / 2.5mm
Driving Speed:
Sampling:
When Sampling Length = 0.25mm, Vt = 0.135mm/s
When Sampling Length = 0.8mm, Vt = 0.5mm/s
When Sampling Length = 2.5mm, Vt = 1mm/s
Returning: Vt = 1mm/s
Accessories (EN):
Standard Accessories:
Main Unit
Standard Sensor
Standard Sample Plate
Adjustable Leg
Sheath of Sensor
Screwdriver
Power Adapter
Operation Manual
Carrying Case
Optional Accessories:
Groove Stylus
Curvature Probe
Small Hole Probe
Extension Rod
Measurement Stand
USB Cable & Software
Bluetooth Adapter & Software
