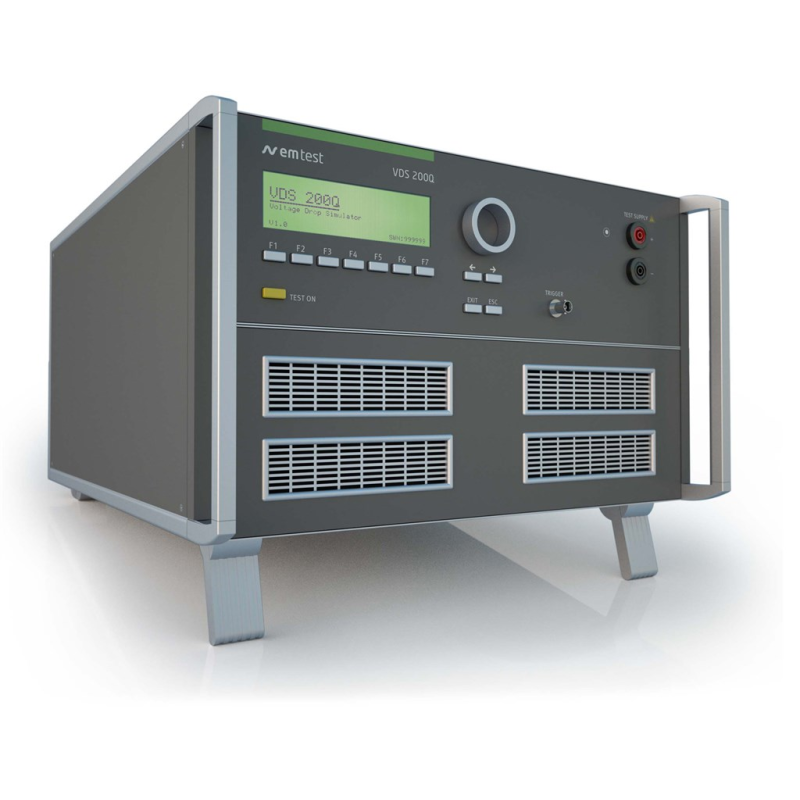

AMETEK CTS VDS 200Q10.2-230 ເຄື່ອງຂະຫຍາຍສຽງ 4-Quadrant (-60 ... +60 Vpk, 0 ... 10 A, 180, 230 VAC)
Output voltage (cont.): -60 ... +60 VDC
Output current (cont.): 0 ... 10A
Bandwith (-3dB): DC ... 180kHz, full signal
Slew rate typical: < 10us (STD mode) / < 3us (HF mode)
Source impedance: < 10 mΩ
Compensation Modes: CAP: DC ... 3kHz / STD: DC ... 40 kHz / HF: DC ... 150 kHz
Recovery time: 90 % of max. excursion within 25 µs
Sense Lines: Yes, voltage drop compensation in cabling, max 8 VDC (AC up to to approx. 8 kHz)
Ripple voltage ( noise): < 10 mVpp up to min. 400 Hz
Safety: Circuit breaker
Interface (remote control):
1 x IEEE
1 x USB
(ethernet only pass-through AutoWave)
Interfaces:
1 x trigger IN
1 x trigger OUT
1 x ± 10 analoge input
Cooling: Temperature- controlled air cooling
Power Mains: 230 VAC ± 10 % / L, N, PE
Fusage 230 V: 6.3 AT
Power mains frequency: 50 ... 60 Hz
Housing / Compartment: 19" / 6HU
Dimension: 289 x 535 x 500 mm
Weight: 37 kg
Operating temperature: 10 ... 40 °C
Humidity: 10 ... 90%, non-condensing
Pressure: 860 mbar ... 1060 mbar
