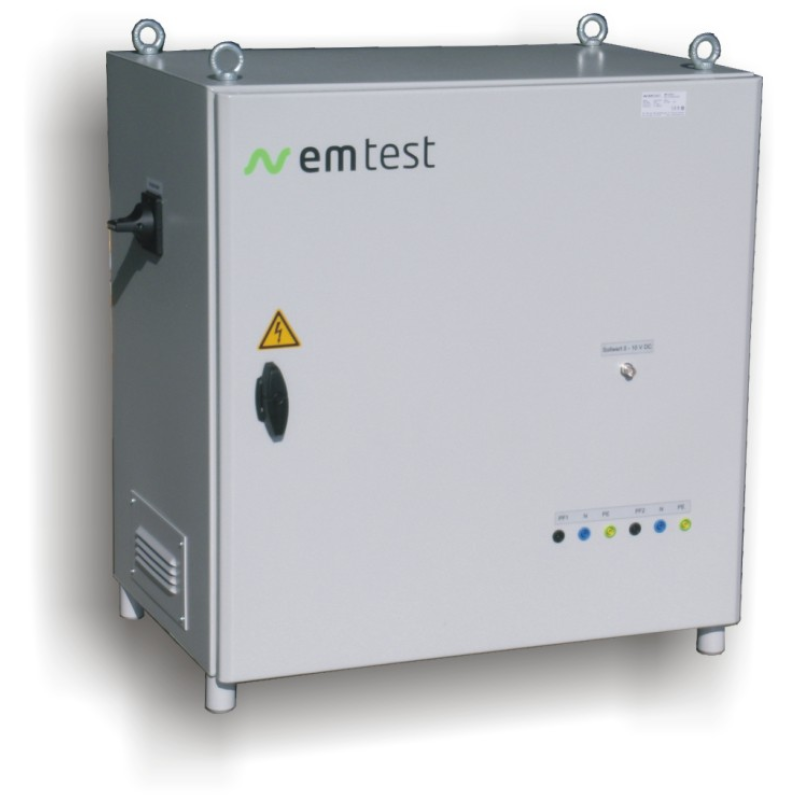

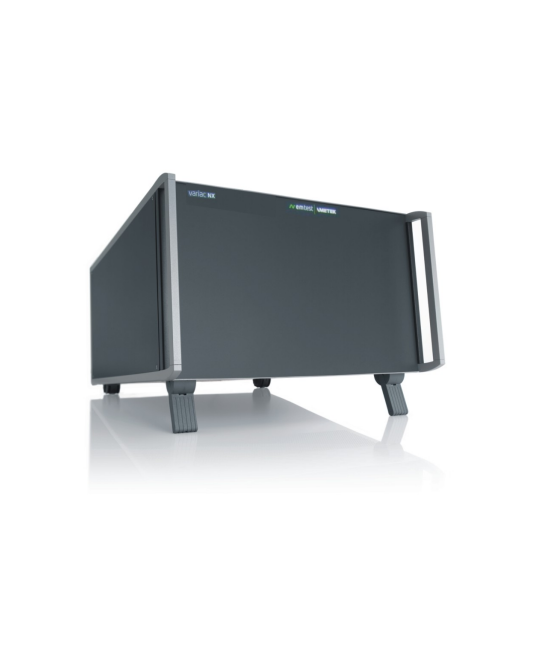

AMETEK CTS variac NX 1-260-32 ຕົວແປຂອງມໍເຕີໄລຍະດຽວ (0 - 260 V, 32 A, @230 V, 0 - 130 V, 32 A, @115 V)
Input voltage: Max. 250 V
Frequency: 50 Hz/60 Hz
Output voltage:
0 - 130 V @115 V
0 - 260 V @230 V
0 - 275 V @250 V
Output current: Max. 32 A
Output power: 0 - 8,320 VA
Output PF1: Nominal mains supply voltage
Output PF2: 0 V - maximum output voltage (depending on the model and supplied mains supply voltage)
Output connectors: 4 mm safety lab connectors PF1, PF2, Neutral and PE
Mains switch: On/Off for the output voltages
Control voltage: Analog 0 - 10 VDC (0 V to max. output voltage)
Slew rate: < 2 seconds, full range
Dimensions: Rack mounted in 19" rack or mounted into a separate cubicle 680mm x 600mm x 410mm (HxLxW)
Weight: approx. 58 kg
Supply voltage: 115/230 V
Fuses: 35 A (PF1), 35 A (PF2)
Temperature: 10 °C to 35 °C
Humidity:30 % to 75 %, non condensing
Atmospheric pressure: 86 kPa (860 mbar) to 106 kPa (1,060 mbar)
