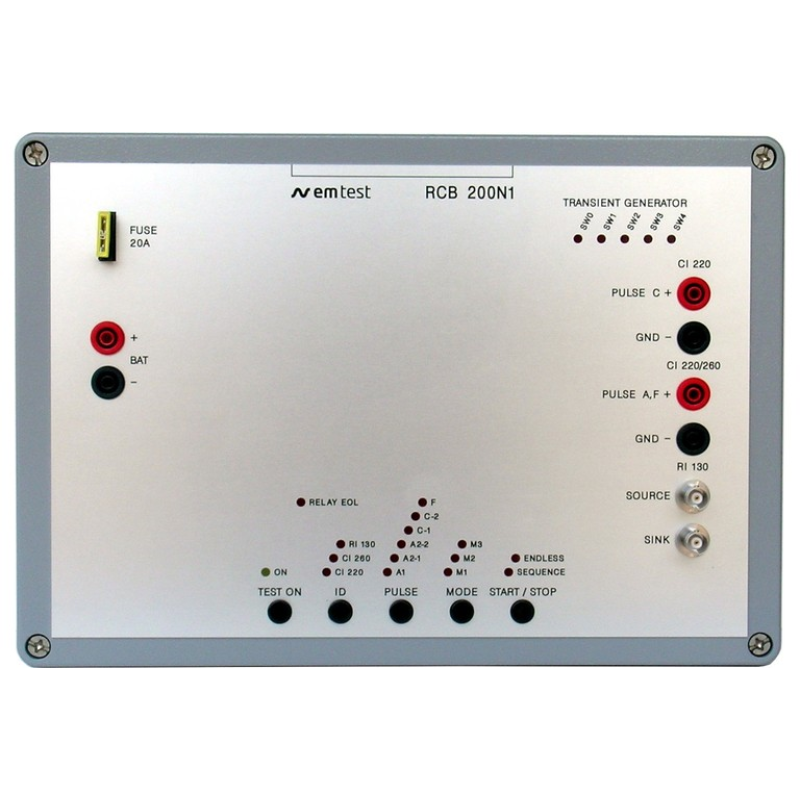

AMETEK CTS RCB 200N1 ເຄື່ອງສ້າງການທົດສອບພູມຕ້ານທານຊົ່ວຄາວ (CI 220; CI 260; RI 130)
RCB 200N1:
Resistor R1: 51 ohms, 25W
Resistor R2: 220 ohms ± 5%, 2W
Resistor R3: 33 ohms ± 5%, 10W
Resistor R4: 6 ohms ± 5%, 50W
Capacitor C1: 100 nF capacitor, 400V
Inductor L1: 5 uH inductor (Osborne transformer part no. 8745)
Inductor L2: 100 mH inductor (Osborne transformer part no. 32416)
Diode D1: Zener diode, 39V, 5W
Transistor Q1: NPN transistor
SW0 - SW4: Single Throw Switch
RLY1: 12 volt AC relay, NC contact used (Potter&Brumfield KUP-14A15-12)
Input: 4mm safety lab connectors for DC supply (e.g. battery or VDS 200x)
Trigger: External trigger input (BNC)
Outputs: 4mm safety lab connectors for CI 220 and CI 260 testing; 50 ohm BNC connectors for RI 130 testing
LEDs: Indiaction of the
- TEST ON status
- Test (ID)
- Pulse
- Mode
- Sequence or endless
- Switching status (SW0 - SW4)
- Relay EOL (end of life reached)
Dimensions: 330mm x 230mm x 115mm
Weight: approx 7.5kg
Fuse: 20A for DUT supply current
Protection: Electronically protected against overvoltage and reversed polarity
