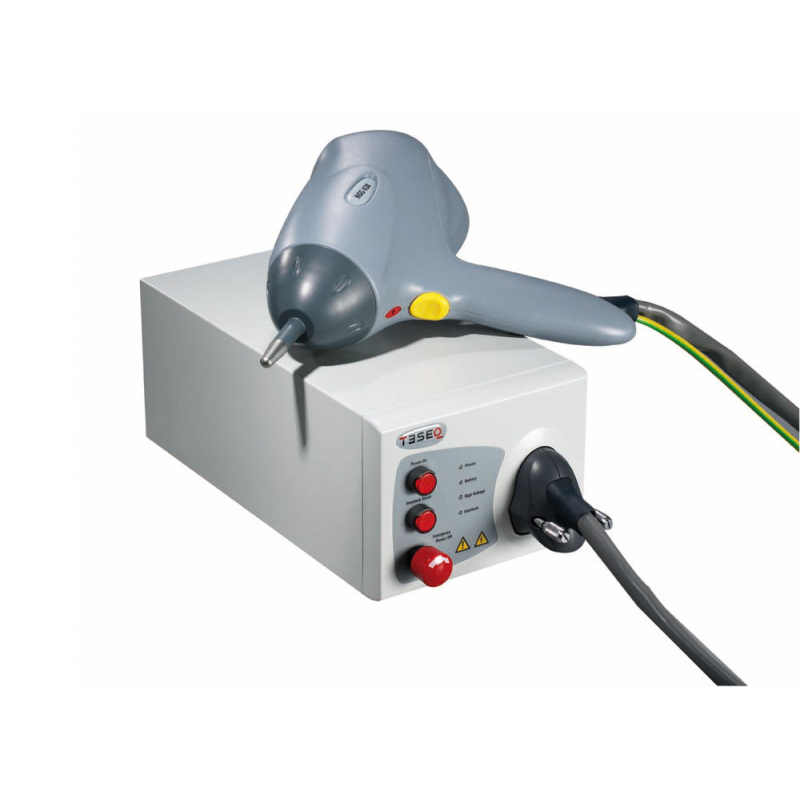

AMETEK CTS NSG 438 ເຄື່ອງຈຳລອງ ESD 30 kV (200 ... 30'000 V ± 5 %)
Air discharge voltage: 200 ... 30'000 V ± 5 %
Contact discharge voltage: 200 ... 30'000 V ± 5 %
Holding time: > 5 s (voltage drop max. -5%)
Frequency / repetition:
0.5, 1 ... 20 Hz in 1 Hz steps; 25 Hz (only air discharge)
Free / period: 0.04 ... 300 s in 0.01 s steps
Polarity: pos / neg / alternating
Operating modes: single / continuous
Counter: 0 ... 9'999
Threshold detection: Yes
Discharge tips: exchangable, ball and point according to ISO 10605, discharge sphere 25 mm
Display: Color touch screen
Power supply: NiHM battery, 2080mAh; power mains
Number of discharge with battery: 30'000 @ 30kV
Built-in bleed off: No
External bleed off option: Yes, with INA 4430
Remote interface: Yes, fiber obtic link to USB
Remote control software: Yes, esd.control (limited support)
Interlock: Yes
Remote Trigger: Yes
EUT Fail: Yes
Self calibration: Yes, after power up, at any time
R/C module detection: Yes
Storing user tests: Yes
Power mains (base station): Input: 100 ... 240 VAC, 1.4 A max. , 50 ... 60 Hz; Output: 24 VDC, 2.71 A
Weight (base station): approx. 6.5 kg
Weight gun incl. discharge network: approx. 1'250 g
Dimension: Base station: 170 x 360 x 140 mm;
Discharge gun: 85 x 270 x 260 mm
Operating temperature: +5 ... + 40°C
Humidity: 20 ... 80 %, non condensing
Athmospheric pressure: 860 ... 1'060 mbar
Scope of delivery
-Discharge unit / gun
-Base station incl. battery pack
-Power mains adapter
-AD / CD tip, discharge sphere 25 mm
-Ground return cable 2 m
-Discharge network 150 pF / 330 Ω
-Cradle
