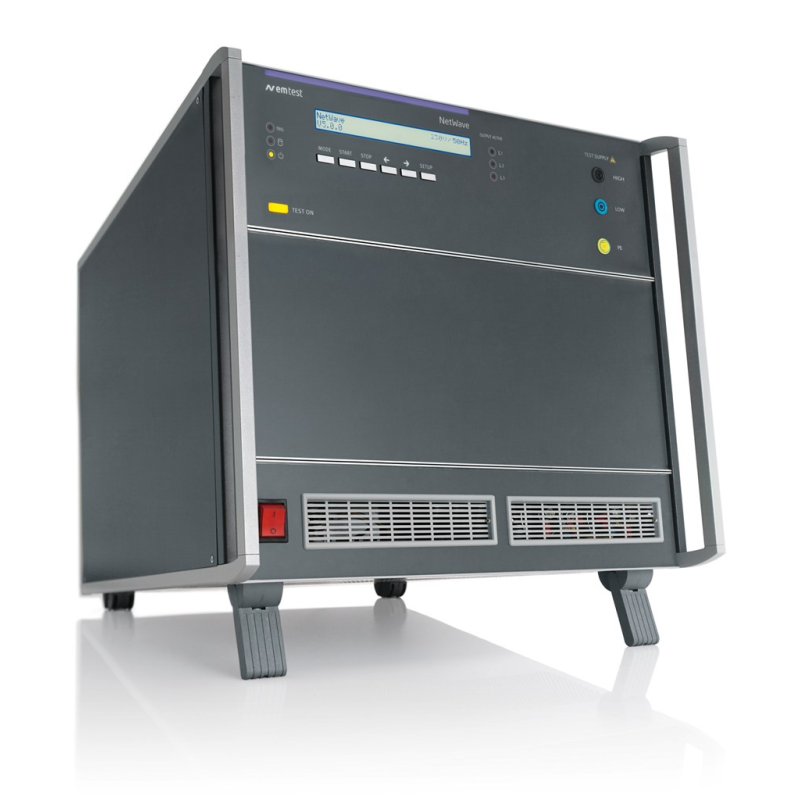

AMETEK CTS NetWave 3.1-208 ແຫຼ່ງພະລັງງານເອເລັກໂຕຣນິກ (3 kVA; 310 V; 4.25 kW; ± 440 V)
Output Power AC: 3 kVA
Output Voltage AC: 310 V
Output Current AC: max. 10 A cont. (at 300 V), 20 A for 3 s, 70 A repetitive peak
Output Power DC: 4.25 kW
Output Voltage DC: max. ± 440 V
Output Current DC: max. 10 A cont. (at 360 V), 20 A for 3 s, 70 A repetitive peak
Number of Lines: 3
Frequency range: Large signal: 0 - 5 kHz, small signal: up to 35 kHz
Ripple: <50 V: 110 mV; >50 V: <200 mVrms + 0.02% of set value
THD @ 50/60Hz, max.: 0.5 %
Voltage Accuracy: DC: ±0.2 % of set value ±0.15 % of full scale, AC: add ±0.1 % of set frequency /1000
Phase Resolution: 1 °
Frequency Accuracy: 100 ppm
Slew Rate max.: 8000 V/ms
Compensation / Sense: internal / external sense, max. compensation 15%
Display and Controls: 2-Line LCD display, LED indicators, operating keys
Signal Generator: Integrated, 3 channels, 16 bit, 50 kSa/s per channel, min. 60 GB memory on hard disk
Safety: Emergency stop
Protection: Over current, over voltage, over temperature, low voltage, current limiter
Output Connectors: 4 mm lab plugs
Supply Frequency: 45 Hz – 65 Hz
Supply Voltage: 208 V, 1PH+PE
Supply Current: 35 A cont. / 50 A for 3s
Supply Connector: Screw Terminal
Dimensions: 19" / 9HU, 417 x 449 x 500mm / 17 x 18 x 20 in
Net Weight: 45 kg / 99 lbs
Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)
