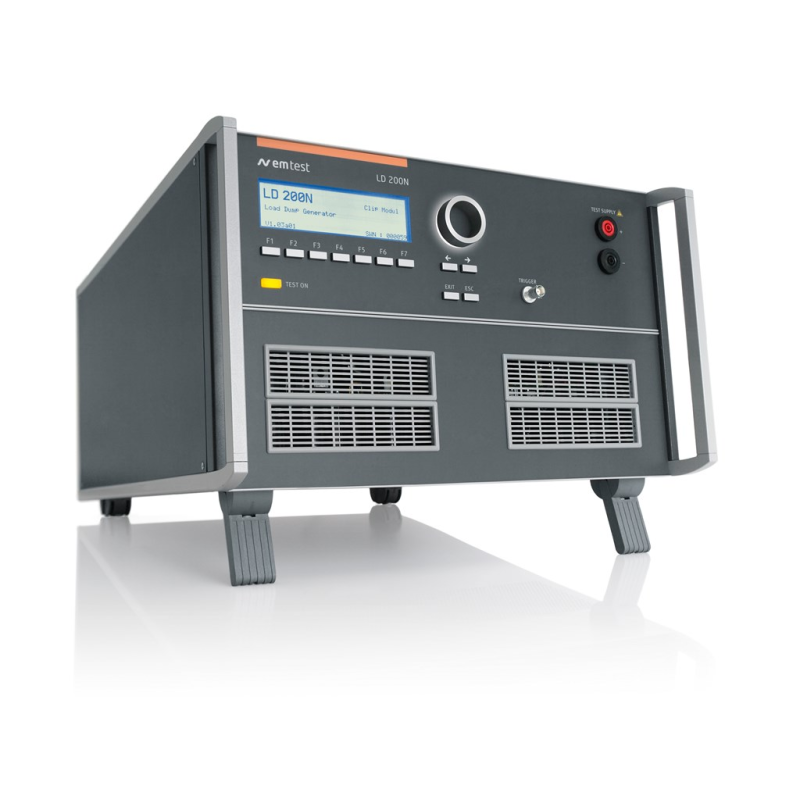

AMETEK CTS LD 200N ເຄື່ອງສ້າງການໂຫຼດ (80 VDC; 30 A)
DUT supply voltage: + 80 VDC
DUT supply current: 30 A
Inrush current: No
DC battery switch built-in: No. Only when using a UCS 200Nx
Over current protection: No. Only when using a UCS 200Nx
Inputs: +/- Test supply IN
Outputs: +/- Test supply OUT; +/- Pulse OUT
Remote interface: GPIB / USB
Other interfaces: D-sub connector, to UCS 200Nx series
Triggers 1 x Trigger IN / 1 x Trigger OUT
External impedance Ri: Yes, 10 Ω min. setting at the generator + external impedance value
Safety: Safety circuit, Warning lamp
Dimensions: 19" / 6 HU (500 x 450 x 287 mm)
Weight: 30 kg
Power mains supply: 115 / 230 VAC +10/-15% ; 50 - 60 Hz
Fusage: 2 x 2 AT (230 VAC) / 2 x 4 AT (115 VAC)
Temperature: 10 ... 35 °C
Humidity: 30 ... 75 %, non condensing
Athmospheric pressure: 860 ... 1060 mbar
Amplitude: 20 ... 200 V +/- 10 %
Rise time: 5 ... 10 ms
Pulse width: 40 ... 400 ms +/- 20%
Internal resistor Ri: 0.5 ... 38 Ω, step size 0.1 Ω
Clipping voltage range: 15 ... 99.5 V (referred to 0V line)
Pulse repetition time: 15 ... 999 s
FreeStyle
Pulse rise time: 1 ... 10'000 µs
Pulse width: 10 ... 1200 ms +/- 20%
Pulse repetition time: 30 ... 999 s
