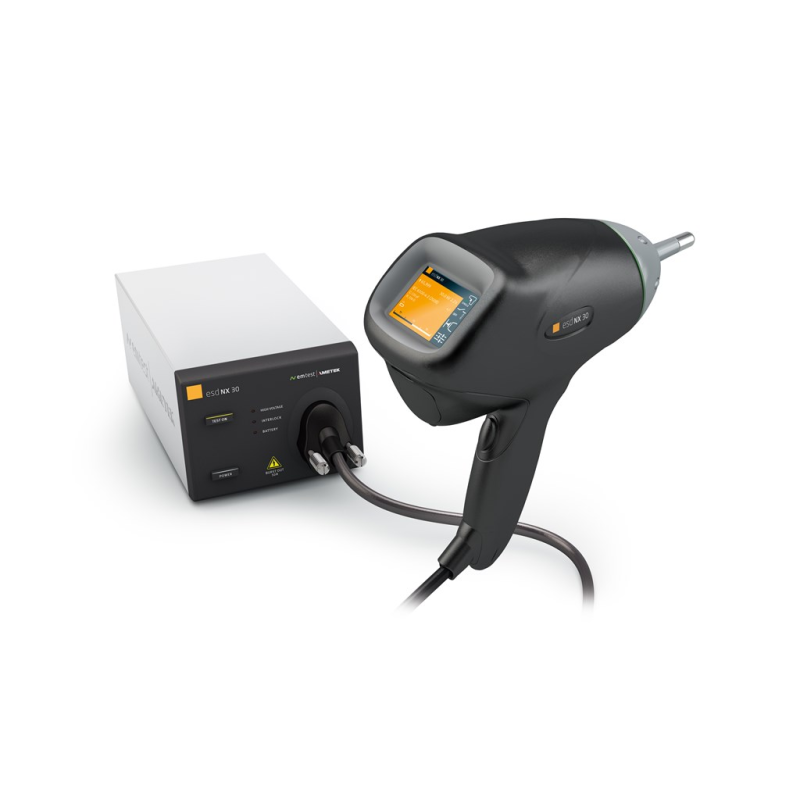

AMETEK CTS esd NX30 ເຄື່ອງຈຳລອງ ESD (200 ... 30'000 V ± 5 %; 200 ... 30'000 V ± 5 %)
Air discharge voltage: 200 ... 30'000 V ± 5 %
Contact discharge voltage: 200 ... 30'000 V ± 5 %
Holding time: > 5 s (voltage drop max. -5%)
Frequency / repetition:
0.5, 1 ... 20 Hz in 1 Hz steps; 25 Hz (only air discharge)
Free / period: 0.04 ... 300 s in 0.01 s steps
Polarity: pos / neg / alternating
Operating modes: single / continuous
Counter: 0 ... 9'999
Threshold detection: Yes
Discharge tips: exchangable, ball and point according to
ISO 10605, additional 25mm discharge sphere
Display: Color touch screen
Power supply: NiHM battery, 2080mAh; power mains
Number of discharge with battery: 30'000 @ 30kV
Built-in bleed off: Yes, switchable
External bleed off option: Yes
Remote interface: Yes, fiber obtic link to USB
Remote control software: Yes, esd.control
Interlock: Yes
Remote Trigger: Yes
EUT Fail: Yes
Self calibration: Yes, any time, after power up
R/C module detection: Yes
Storing user tests: Yes
Auto shut off: After 15 minutes idle time (no loss of test parameters)
Power mains (base station): Input: 100 ... 240 VAC, 1.4 A max., 50 ... 60 Hz; Output: 24 VDC, 2.71 A
Weight (base station): approx. 6.5 kg
Weight gun incl. discharge network: approx. 1'250 g
Dimension:
Base station: 170 x 360 x 140 mm
Discharge gun: 85 x 270 x 260 mm
Operating temperature: +5 ... + 40°C
Humidity: 20 ... 80 %, non condensing
Athmospheric pressure: 860 ... 1'060 mbar
