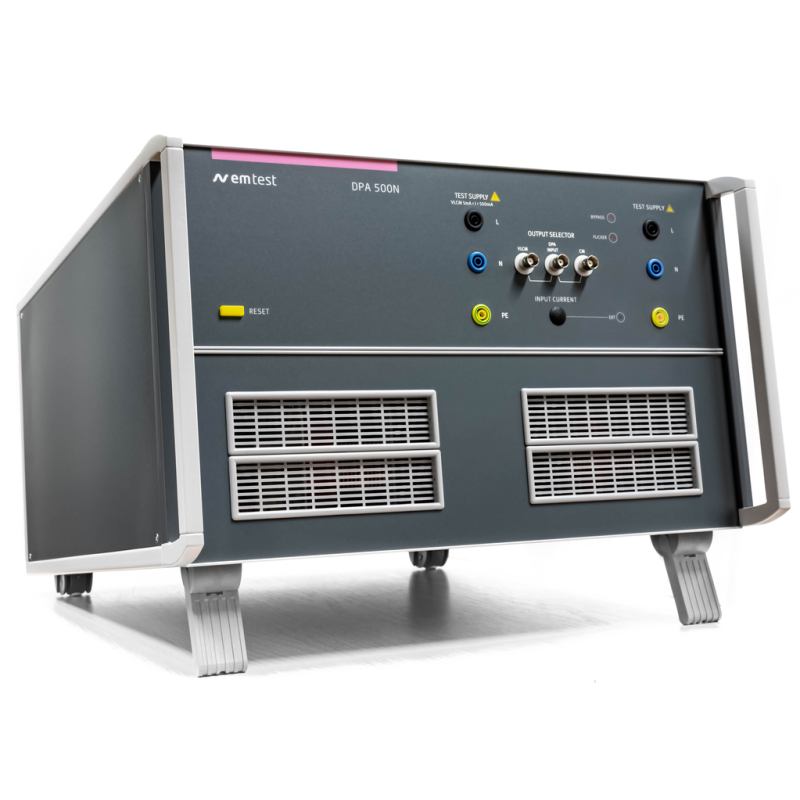

AMETEK CTS DPA 500N1.1 ເຄື່ອງວິເຄາະພະລັງງານດິຈິຕອນ (10 - 530 Vrms; 0 - 26 Arms; 0 - 500 mArms)
Measuring system
Voltage:
1 channel
10 - 530 Vrms (4 kVpeak), 16 bit, 15 - 3000 Hz
Accuracy: ± 0.04 % of range ± 0.30 % of reading
Current:
2 outputs (selectable via BNC cable)
Current Measurement CM: 0 - 26 Arms continuous
Very Low Current Measurement VLCM: 0 - 500 mArms
Accuracy: ± 0.1 % of range ± 0.70 % of reading ± 0.08 % of (frequency / 1000)
Processing: Embedded processor (Pentium 200 MHz), signal processor (Motorola DSP), memory (internal hard disk, approx. 1 MB/min data, more than 30 hours recording time), USB interface (control and data transfer)
Harmonics
Analyzer: Class 1 instrument according IEC 61000-4-7 Ed. 1 and Ed. 2.1 for IEC 61000-3-2, IEC 61000-3-12 (with external current transformer), JIS 61000-3-2 and related standards
Harmonics analysis: 1 st to 50th harmonic, rectangular measurement window (8, 10, 12 or 16 periods), 16 bit ADC, anti-aliasing filter (> 90 dB), FFT algorithm, smooting filter (1st order 1.5s digital low pass filter, on/off selectable), grouping (on/off), PLL synchronization
Flicker
Flicker meter: according IEC 61000-4-15 for IEC 61000-3-3 and related standards (120 / 230 V, 50 / 60 Hz)
Accuracy: better than 5% (as defined by IEC 61000-4-15)
Observation period: Pst minimum 1 minute, selectable
Analysis: Pst, Plt, Vrms, dc, dt, dmax, Tmax, P50%S, P10%S, P3%S, P1%S, P0.1%
Impedance: built-in Zref according IEC 60725 (line 0.24 Ω + j0.15 Ω and neutral 0.16 Ω + j0.10 Ω)
Environment: 0 - 40 °C, 10 - 90 % (non-condensing), 3 kV insulation voltage (input to housing)
Mains supply: 85 - 225 V, 47 - 63 Hz, max. 50 W
Dimensions: 19" 6HU housing, 266 x 449 x 500 mm / 10.4 x 17.7 x 19.7"
Weight: 26 kg / 57 lbs
