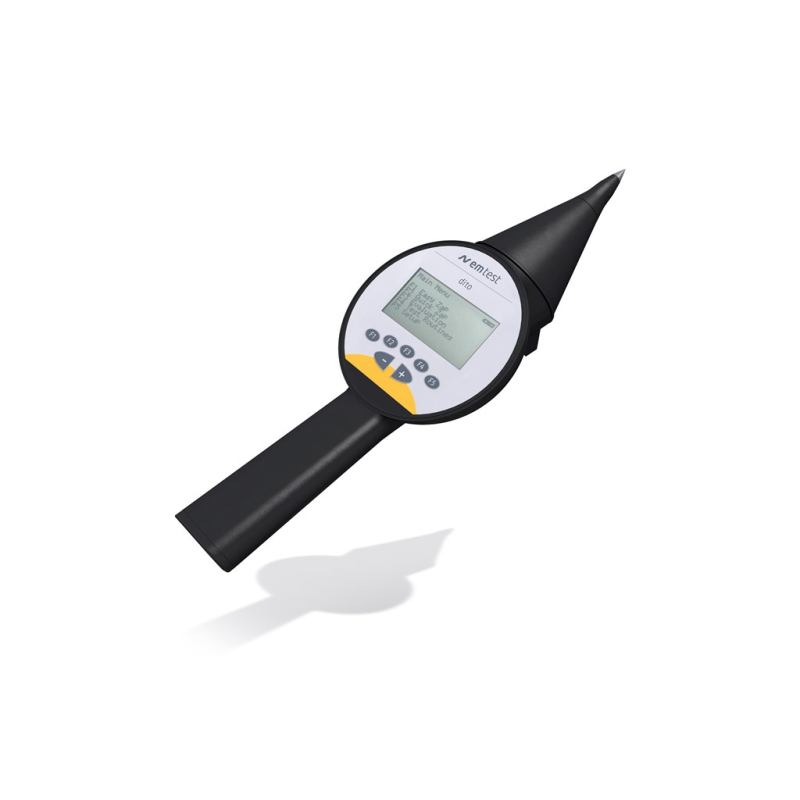

AMETEK CTS dito ເຄື່ອງຈຳລອງ ESD (500 ... 10'000 V ± 5%; 500 ... 16'500 V ± 5%)
Discharge voltage
Contact discharge : 500 ... 10'000 V ± 5% (in 100 V steps)
Air discharge: 500 ... 16'500 V ± 5% (in 100 V steps)
Frequency / repetition:
0.5 ... 20 s (in 0.5 s steps)
1 ... 20 Hz (in 1 Hz steps), max 10Hz for CD
Polarity: positive / negative / alternating
Operation modes / trigger: single / continuous
Counter:
up: 1 ... 30'000
down: 0 ... 999'999
Accuracy charging voltage: < ± 5 % (at discharge tip)
Holding time: > 5 s (charging voltage max. - 5 %)
Auto shut off: After 10 minutes idle time
Discharge tips: exchangable , ball and point as per IEC 61000-4-2
Operation local control: 5 function keys, 2 cursor keys, 1 trigger
Operation remote control: software esd.control
Display: LCD graphic display
Power supply: LiFePO4 battery (1000mAh); > 70'000 discharges @ 16.5 kV
Weight: approx. 870 g (incl. battery)
Ambient conditions (operation): + 5 ... + 40 °C / 20 ... 80 % humidity (non condensing) / 860 ... 1060 mbar
