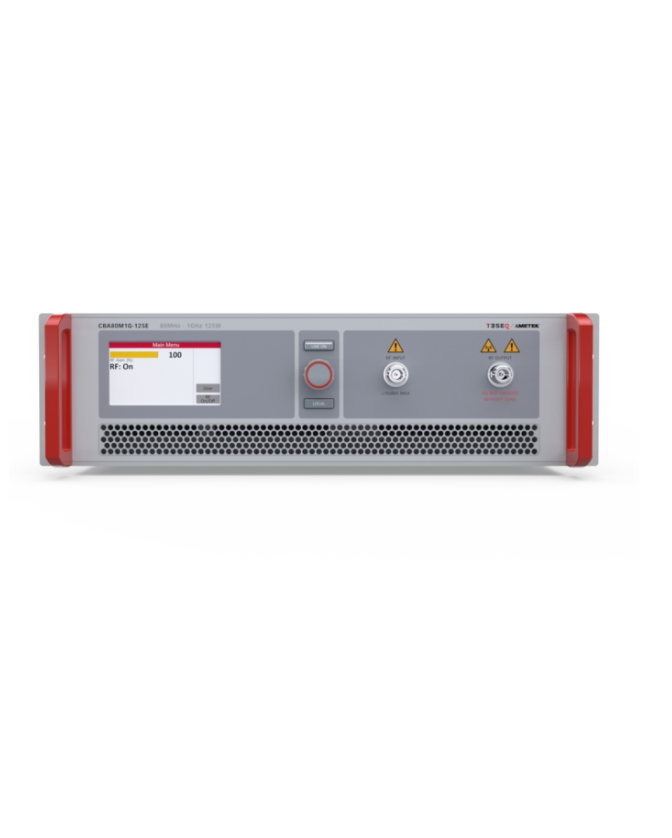

AMETEK CTS CBA80M1G-125E-001 ເຄື່ອງຂະຫຍາຍສຽງແບບ Solid State (80 MHz ~ 1 GHz; 140W; 120W)
Front Panel RF Connectors
Frequency Range: 80 MHz to 1 GHz
Rated Output Power: 125W (min) - 140W (typ)
Power Output @ 1dB Compression: 100W (min) - 120W (typ)
Input for Rated Output: 0dBm (1mW)
Small Signal Gain: 55 dB
Gain Variation (max) ±: 2.0 dB
Gain Control Adjust When Below P1dB: 20 dB
Harmonics @ P1dB (min): -20 dBc
Spurious (typ): -70 dBc
Input VSWR: 1.5:1 (max)
Output VSWR: 2:1 (typ)
Output Impedance: 50 Ohm
3rd Order Intercept Point: 58 dB
Noise Figure (typ): 8 dBm
Modulation Formats: AM, FM, PM, ODFM
Maximum Input Power (no damage): 13 dBm
Output VSWR Tolerance: Infinite any Phase (No Foldback)
Supply Voltage: 100 to 240 VAC
Supply Power (max): 0.6 KVA
Dimentions (No Cabinet) (W x H x D): (3U) 48.3 x 13.4 x 65.3 cm (19.0 x 5.3 x 25.7 in)
Weight (No Cabinet): 15.8 kg (34.75 lb)
Com. Interface: IEEE-488 / RS-232 / RS-232 (fibre optic) / USB 2.0 / Ethernet
