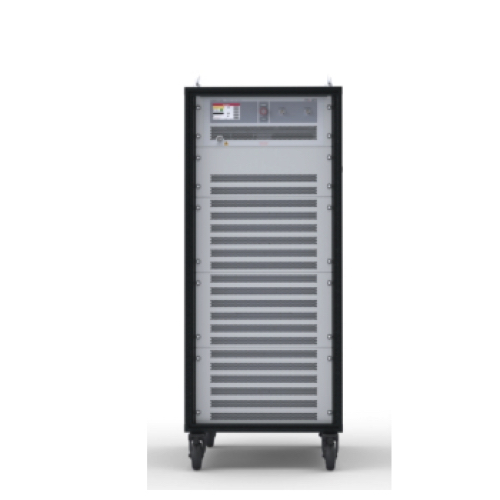

AMETEK CTS CBA80M1G-1000E-002 ເຄື່ອງຂະຫຍາຍສຽງແບບ Solid State (80 MHz ~ 1 GHz; 1250W; 1150W)
Rear Panel RF Connectors
Frequency Range: 80 MHz to 1 GHz
Rated Output Power: 80 - 650 MHz 1100W (min) - 1250W (typ)
Rated Output Power: 650 - 1000 MHz 1000W (min)
Power Output @ 1dB Compression: 80-650 MHz - 1050W (min) - 1150W (typ)
Power Output @ 1dB Compression: 650 -1000 MHz - 950W (min)
Input for Rated Output: 0dBm (1mW)
Small Signal Gain: 62 dB
Gain Variation (max) ±: 1.5 dB
Gain Control Adjust When Below P1dB: 20 dB
Harmonics @ P1dB (min): -20 dBc
Spurious (typ): -70 dBc
Input VSWR: 1.5:1 (max)
Output VSWR: 2:1 (typ)
Output Impedance: 50 Ohm
3rd Order Intercept Point: 66 dB
Noise Figure (typ): 8 dBm
Modulation Formats: AM, FM, PM, ODFM
Maximum Input Power (no damage): 13 dBm
Output VSWR Tolerance: Infinite any Phase (No Foldback)
Supply Voltage: 200 to 240 VAC
Supply Power (max): 3.7 KVA
Dimentions (With Cabinet) (W x H x D): (26U) 57.3 x 136.0 x 67.1 cm (22.6 x 53.5 x 26.5 in)
Weight (With Cabinet): 156 kg (343 lbs)
Com. Interface: IEEE-488 / RS-232 / RS-232 (fibre optic) / USB 2.0 / Ethernet
