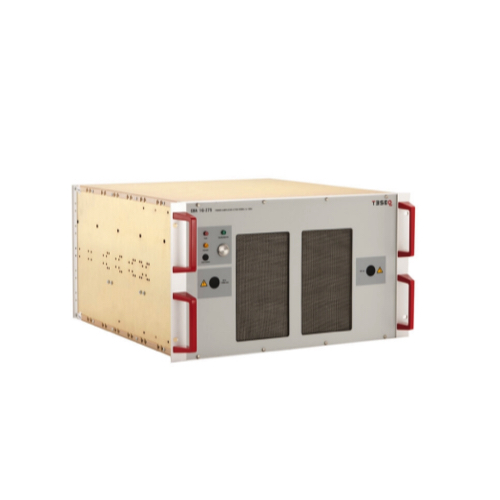

AMETEK CTS CBA250M-800-002 ເຄື່ອງຂະຫຍາຍສຽງແບບ Solid State (0.01 - 250 MHz; 900W; 750W; 650W; 500W)
Rear Panel RF Connectors
Frequency Range: 0.01 - 250 MHz
Rated Output Power: 10KHz-80MHz - 800W (min) - 900W (typ)
Rated Output Power: 80-250MHz - 650W (min) - 750W (typ)
Power Output @ 1dB Compression: 10KHz-80MHz - 650W (min)
Power Output @ 1dB Compression: 80-250MHz - 500W (min)
Input for Rated Output: 1 dBm
Small Signal Gain: 63 dB
Gain Variation (max): ±2.0 dB
Harmonics @ P1dB (min): -20 dBc
Spurious: -70 dBc
Input VSWR: 2:1 (max)
Output VSWR: 2:1 (typ)
Output Impedance: 50 Ohm
3rd Order Intercept Point: 68 dB
Noise Figure: 10 dB
Modulation Formats: AM, FM, PM, ODFM
Maximum Input Power (no damage): 10 dBm
Output VSWR Tolerance: Infinite any phase
Stability: Unconditional
Acoustic Noise (measured @ 1 M): 60 dBA
Supply Frequency: 47 to 63 (Hz)
Supply Power (typ): 3 KVA
Supply Voltage: 90 to 264 VAC
Dimentions ((No Cabinet) (W x H x D): 48.3 x 26.7 x 55 cm (19 x 10.5 x 21.6 in) (6U)
Weight (No Cabinet): 20 Kg (44 lb)
Com. Interface: GPIB, Ethernet & USB
