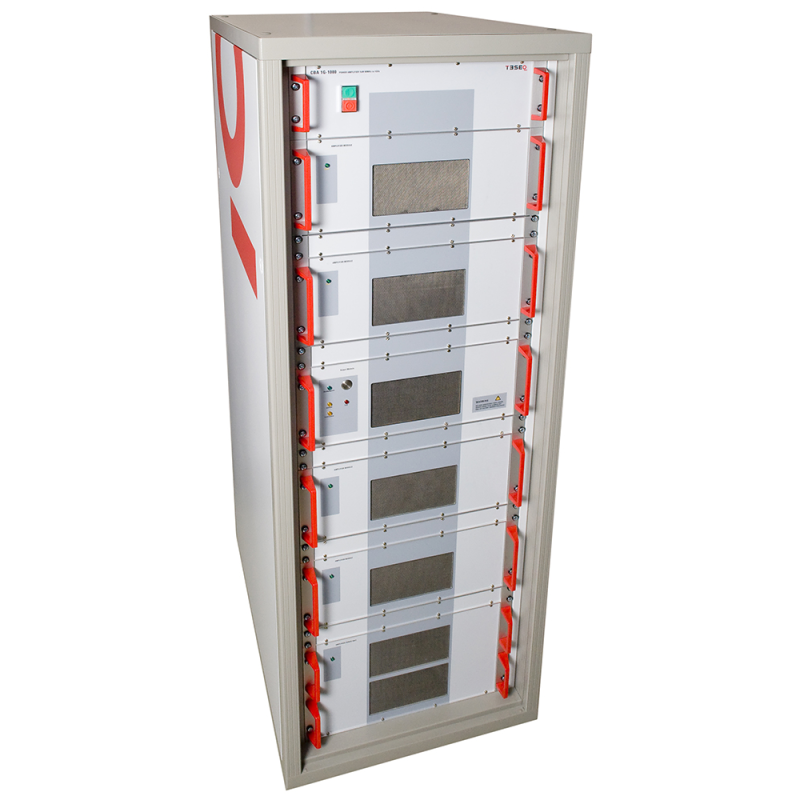

AMETEK CTS CBA250M-2500-004 ເຄື່ອງຂະຫຍາຍສຽງແບບ Solid State (0.01 - 250 MHz; 2800W; 2100W; 3 Phase, 5 Wire (3P+N+E), 380 ~ 415 VAC)
Rear Panel RF Connectors, 3 Phase, 5 Wire (3P+N+E), 380 to 415 VAC Line to Line
Frequency Range: 0.01 - 250 MHz
Rated Output Power: 10KHz-100MHz - 2500W (min) 2800W (typ)
Rated Output Power: de-rating from 100-250MHz - 2500W to 1900W (min)
Power Output @ 1dB Compression: 10KHz-80MHz - 2100W (min)
Power Output @ 1dB Compression: de-rating from 100-250MHz - 2100W to 1400W (min)
Input for Rated Output: 1 dBm
Small Signal Gain: 64 dB
Gain Variation (max): ±3.0 dB
Harmonics @ P1dB (min): -20 dBc
Spurious: -70 dBc
Input VSWR: 2:1 (max)
Output VSWR: 2:1 (typ)
Output Impedance: 50 Ohm
3rd Order Intercept Point: 73 dB
Noise Figure: 10 dB
Modulation Formats: AM, FM, PM, ODFM
Maximum Input Power (no damage): 10 dBm
Output VSWR Tolerance: Infinite any phase
Stability: Unconditional
Acoustic Noise (measured @ 1 M): 64 dBA
Supply Frequency: 47 to 63 (Hz)
Supply Power (typ): 11 KVA
Dimentions (With Cabinet) (W x H x D): 51.0 x 151 x 80 cm (20.1 x 59.5 x 31.5 in) (34U)
Weight (With Cabinet): 291 Kg (642 lb)
Com. Interface: GPIB, Ethernet & USB
