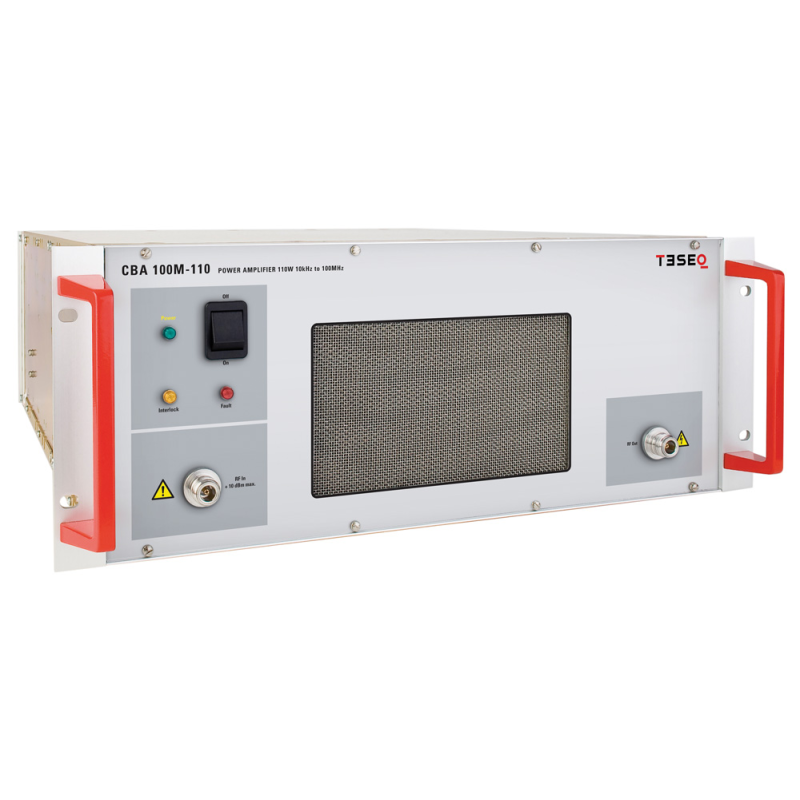

AMETEK CTS CBA100M-110-001 ເຄື່ອງຂະຫຍາຍສຽງ RF (0.01 - 100 MHz; 130W; 95W)
Front Panel RF Connectors
Frequency Range: 0.01 - 100 MHz
Rated Output Power: 110W (min) - 130W (typ)
Power Output @ 1dB Compression: 90W (min) - 95W (typ)
Input for Rated Output: 1 dBm
Small Signal Gain: 51 dB
Gain Variation (max): ±2.0 dB
Harmonics @ P1dB (min): -20 dBc
Spurious: -70 dBc
Input VSWR: 2:1 (max)
Output VSWR: 2:1 (typ)
Output Impedance: 50 Ohm
3rd Order Intercept Point: 60 dB
Noise Figure: 12 dB
Modulation Formats: AM, FM, PM, ODFM
Maximum Input Power (no damage): 10 dBm
Output VSWR Tolerance: Infinite any phase (no foldback)
Stability: Unconditional
Supply Power (typ): 0.5 KVA
Supply Voltage: 90 to 264 VAC
Dimentions (No Cabinet) (W x H x D): 48.3 x 17.8 x 44 cm (19 x 7.0 x 17.3 in) (4U)
Weight (No Cabinet): 20 Kg (44 lb)
Com. Interface: GPIB, Ethernet & USB
