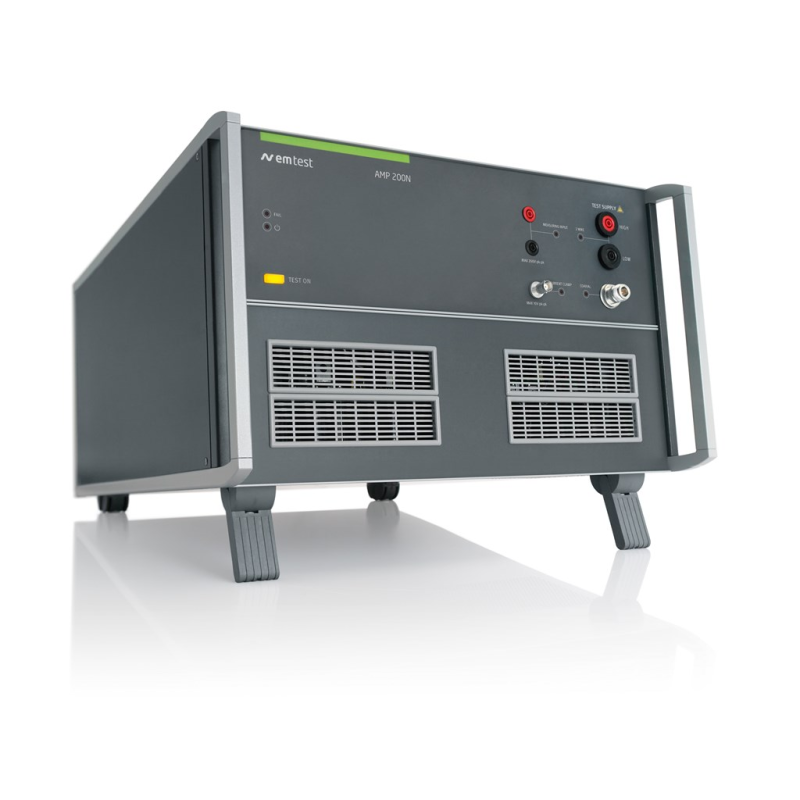

AMETEK CTS AMP 200N2 ເຄື່ອງຂະຫຍາຍສຽງ (500 kHz; 160 V pp / 50 V rms; 18 A rms)
Audio Amplifier
Amplifier Output
Frequency Range: DC ... 500 kHz (sinusoidal) +/- 1 %
Signal Power: max. 1000 W (nominal)
Output Voltage: max. 160 V pp / 50 V rms
Output Current: max. 18 A rms
DC current: max. 25 A (DC H-field)
Bandwidth:
Full Signal Range: DC - 100 kHz /// max. 50 V rms / 160 Vpp (+/- 10 %) *
Extended Range 1: 100 kHz - 250 kHz /// max. 30 V rms / 80 Vpp (+/- 10 %) *
Extended Range 2: 250 kHz - 500 kHz /// max. 30 V rms / 80 Vpp (+1 dB / -3 dB) *
Low Range: 25 V pk / 17 V rms / max. 18 A rms (+/- 10 %)
Mid Range: 55 V pk / 37 V rms / max. 14 A rms (+/- 10 %)
High Range: 80 V pk / 55 V rms / max. 10 A rms (+/- 10 %)
Output Impedance: 30 mΩ @ 1 kHz
Measuring Inputs
Frequency Range:10 .... 250 kHz (+/- 5%)
Current Measurement: With external current clamp:
Range 100 mV/A: 1 mA - 30 A rms
Range 10 mV/A: 10 mA - 300A rms
Voltage Measurement: direct: 17 mV - 70V rms (or wih external voltage probe)
General Data
Interface: Serial interface Framebus (internal bus), to connect to AutoWave or NetWave
Dimension: 19", 6 HU (500 x 449 x 286 mm)
Weight: approx. 40 kg
Supply Voltage:
115 VAC +10/-2 %, 50 ... 60 Hz
230 VAC +10/-15 %, 50 ... 60 Hz
Input Power: max. 1900 VA
Fusage: 16 AT (115 V) / 10 AT (230 V)
Safety:
Short circuit protected
Overtemperature protected, active air cooling by fans
Operating Temperature: +10 ... 40 °C
Humidity: max. 85 %, non condensing
Athmospheric pressure: 860 ... 1060 mbar
* Only signal generating, without using closed loop method
