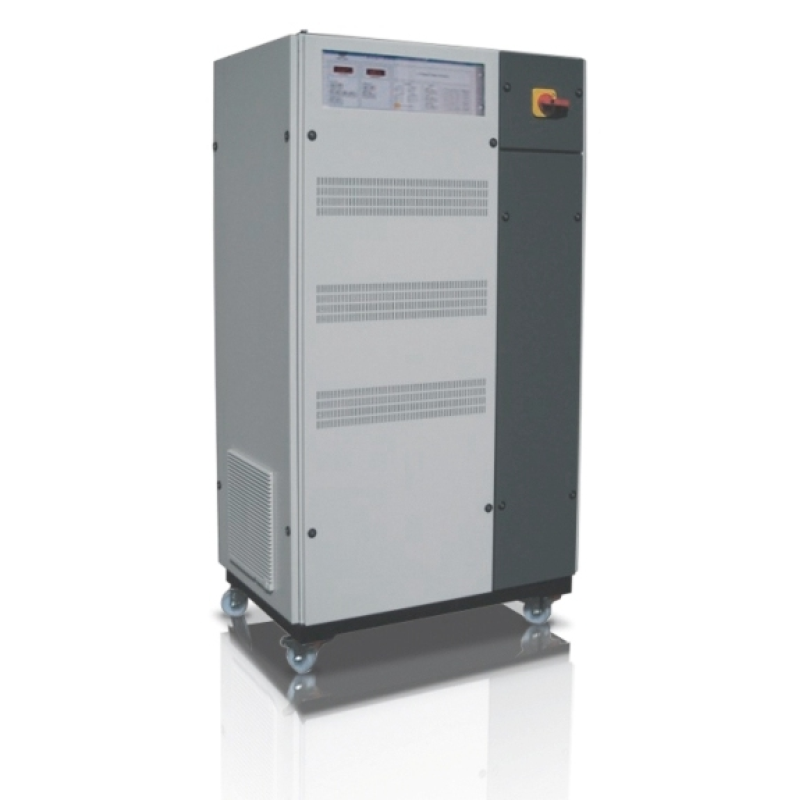

AMETEK CTS ACS 503N30 ແຫຼ່ງ AC ທີ່ສາມາດຕັ້ງໂປຣແກຣມໄດ້ (30 kVA; 300 V)
Output Power AC: 30 kVA
Output Voltage AC: 300 V
Output Current AC: inductive load: 41 A (43 A), resistive: 34 A (33 A), capacitive: 27 A (26 A) cont., 78 A 79 A) for 3 s, 300 A repetitive peak
Frequency range: 40 to 80 Hz full voltage, 10 to 40Hz reduced voltage (25% at 10 Hz)
THD @ 50/60Hz, max.: 0.5 %
Voltage Accuracy: better than 0.5% full scale
Frequency Accuracy: 100 ppm
Compensation / Sense: internal / external sense, max. compensation 5%
Signal Generator: integrated, sine wave
Protection: Over current, over voltage, over temperature, under voltage
Output Connectors: safety laboratory connectors, CEE 3ph connector
AC Supply: 3 x 400 V (3P, PE); 70 A per phase
Supply Frequency: 45 Hz – 65 Hz
Supply Connector: Screw terminals
Dimensions: 1670 x 920 x 625 mm
Net Weight: 550 kg
Operating Environment: 5°C - 35°C, 10% - 90% non-condensing, 86 kPa (860 mbar) to 106 kPa (1 060 mbar)
