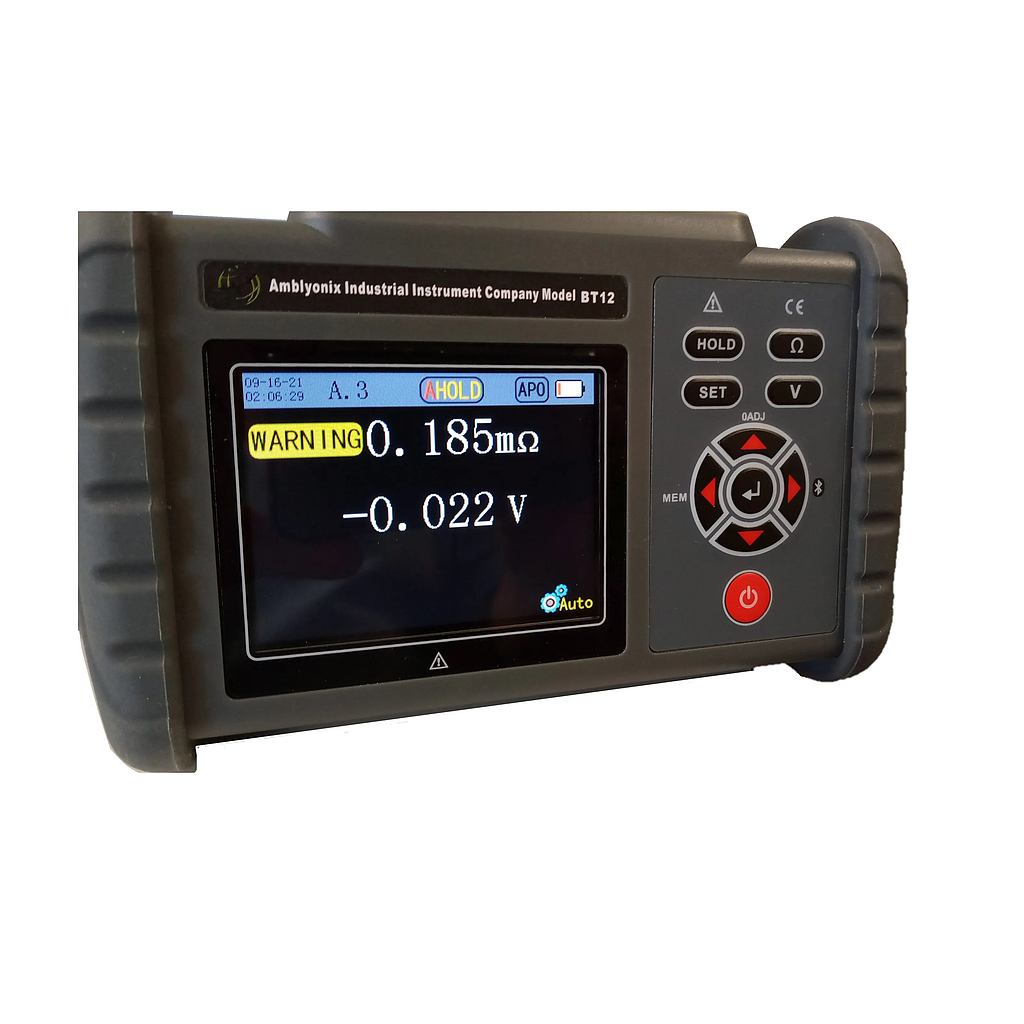

Amblyonix BT12 ເຄື່ອງທົດສອບຫມໍ້ໄຟ (3mΩ/30mΩ/300mΩ/3Ω)

Resistance measurement range: 3mΩ/30mΩ/300mΩ/3Ω

Resolution: 1uΩ/10uΩ/100uΩ/1mΩ

Resistance Accuracy: 1%

Voltage measurement range: 7V/70V

Resolution: 1mV/10mV

Voltage Accuracy: 0.5%

Temperature measurement range: -10.0℃~60.0℃

Resolution: 0.1℃

Temperature Accuracy: ±1.0℃

Measurement method: 1kHz AC 4-terminal test method, open circuit terminal voltage 3V max. with a measuring current between 2.0mA and 200mA (dependent on range).

Temperature measurement: NTC temperature sensor (10K Ω at 26 ℃)

Measurement time: about 2 seconds

LCD display: 70.1mm × 52.6mm (2.75 x 2.0 inches)

Communications: USB or Bluetooth

Storage data: Up to 5000 sets of data

Power supply: DC 3.7V rechargeable lithium battery

Insulation resistance: above 20MΩ (500V between circuit and shell)

Transit Case Dimensions: 13 x 10 x 4.25 inches

Standard: IEC 61010
