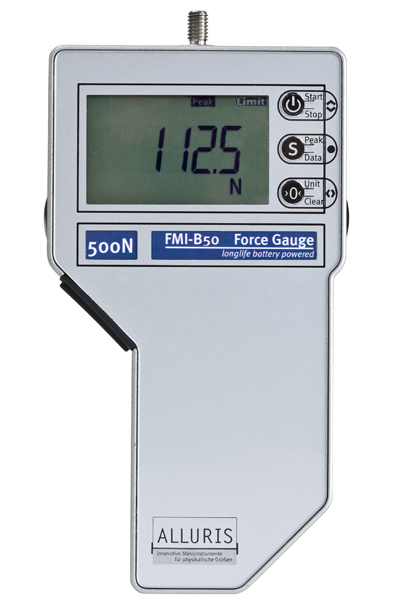

Alluris FMI-B50K5 ມາດຕະຖານແຮງດິຈິຕອນ (5000N)
Capacity F(nom) (N): 5000N
Resolution (N): 1
Accuracy (%): 0.15
Temperature coefficient (%/K ): 0.02
Reproducibility( % F(nom) ): 0.03
Repeatability (% F): 0.03
Hysteresis (% F): 0.075
Creeping (5min) (% F): 0.15
Measuring principle : Bidirectional force sensor with strain gauges and high-speed ?-processor
Nominal deflection( mm): 0.26
Measuring shaft : M10
Max. operating force (% F(nom)): 120
Breaking force (% F(nom)): 200
Display:
Type : 5-digit LCD | 12mm | Autoreverse
Refresh time (ms): 100 ... 1000
Operation modes:
Regular : N | kg | lb
Peak (real-time) : Display of peak value | Peak value of pull- or push force (drag indicator function)
Limits + Statistics : 2 separately adjustable limits | Single value memory and continuous measured value memory
Interface:
USB : USB 2.0 data communication
Hirose : Limit / overload signals. digital I/O's (1 input / 3 outputs). trigger. supply (optional data cable required)
Sensor : Parallel, time-synchronous data acquisition for force and distance
Power supply Type: internal LiPo battery | operation time 150h
Temperature (operation) °C: 0 ... 40
Protection code (EN 60529) Cable not plugged: IP65
Housing:
Material : Hardened steel
LxWxH (mm) : 150 x 82 x 29
Weight (kg) : 1.15
Mounting : 2xM4. 2xM5. adjusting holes D5(H7)
