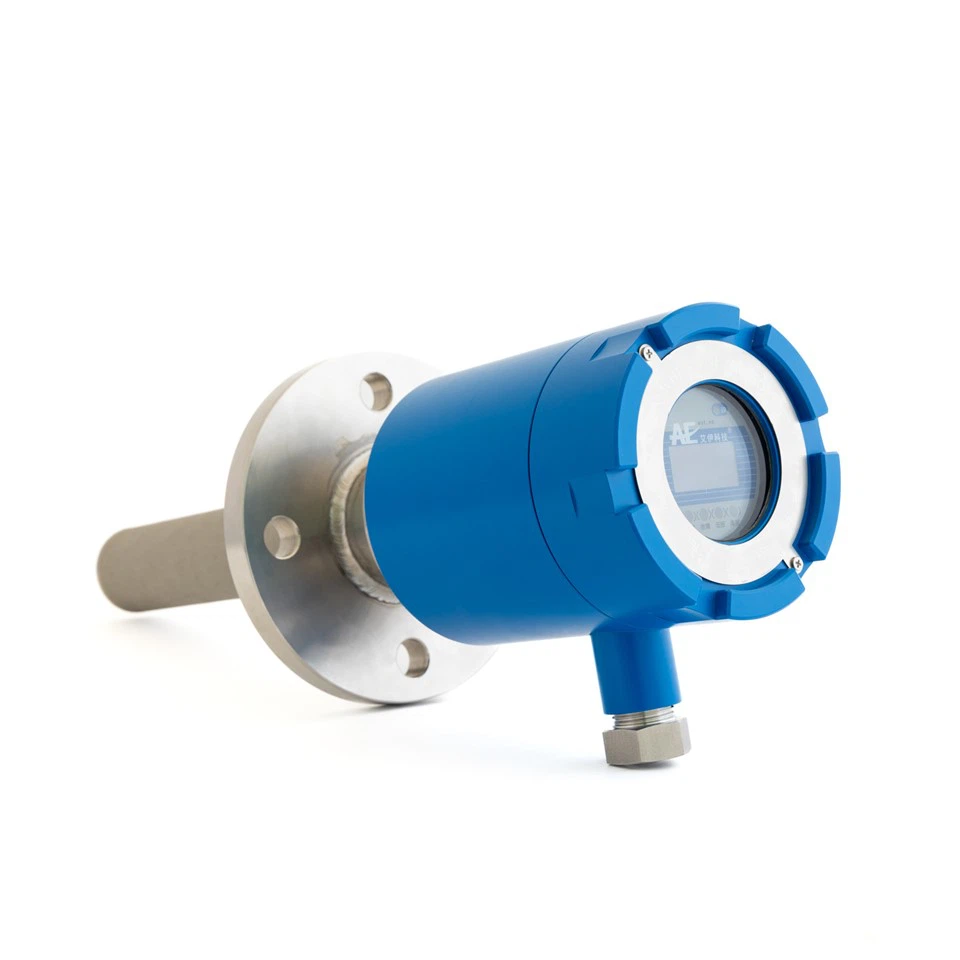

AIYI AGA5000d ອຸປະກອນວິເຄາະແກັດເລຊເອີ

Measuring components:

O2:0~3%/0~5%/0~25%/0~50%VOL CO/CO2:0~3000ppm/0~5%/0~100%VOL

CH4:0~1%/0~10%VOL HF:0~50ppm/0~100ppm HCL:0~500ppm/0~1000ppm

H2S: 0~2%/0~30%NH3: 0~500ppm/0~10%VOL C2H2: 0~200ppm/0~50%VOL

C2H4/C2H6: 0~1000ppm/0~50%VOL C2H40: 0~1000ppm/0~10%VOL

Power supply: 24VDC

Response time: T90≤3s (in-situ), T90≤60s (bypass)

Linear error: ≤±1%F.S./≤±2%F.S. According to the range

Zero drift: ≤±1%F.S./half year

Range drift: ≤±1%F.S./half year

Maintenance cycle: ≤2 times/year, clean the optical window (no consumables)

Calibration cycle: ≤2 times/year

Ingress Protection: IP66
