Three phase output frequency conversion power supply
Input power	3-phase 4-wire(380 ±38)Va.c
Output phase	3-phase 4-wire
Output voltage	Auto:(Low gear)1~150.0V,(High gear)150.1~300.0V Hold:(high gear)1~300V
Output frequency	45~65Hz continuous, adjustable
Frequency stability	0.1%
Power effect	1%
Voltage stability	≤1%
Load effect	1%
Transient recover time	20ms
Over current protection	1.05 rated＜output≤1.1 rated, the output is shut off within 15 Sec. 1.1 ＜output≤1.2 rated, the output is shut off within 5 Sec.
Protection mode	Short-circuit, overload and power device overheat protection
Loading capacity	Can Start a inductive load which capacity is less than 0.5 rated power Capacity of AC power supply, or rectifier load which crest factor is less than 3.0
Memory function	Save the settings before turn off
Shortcut group	6 groups
Preset function	Output voltage, output frequency and output voltage tolerance can be preset under standby status.
Adjustment online	Under running status, output voltage can be adjustable through “+”or”-“button
Input power	3-phase 4-wires/3×220V±15%
Voltage	Resolution:0.1V Accuracy: ±(0.8%×reading +0.2%×range)
Current	Resolution: 0.1A Accuracy: ±(2%×reading+1%×rated output)
Power	Resolution: 0.01KV Accuracy: ±5%
Display	LED 4-windows
Communication	Standard:RS232,Optional:RS485,Remote Control

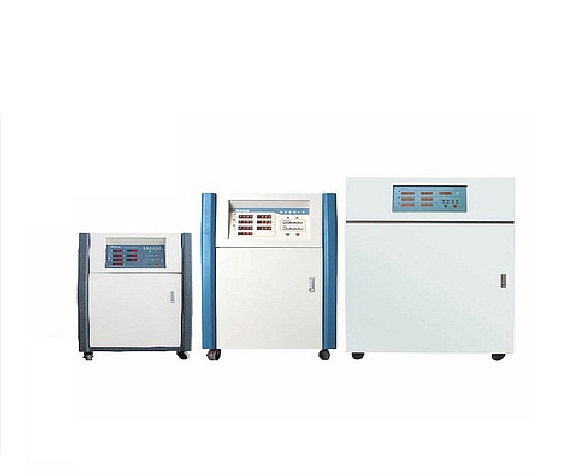

Ainuo AN97030TT(F) Frequency Converter AC Power Supply (30kVA, 46A)
