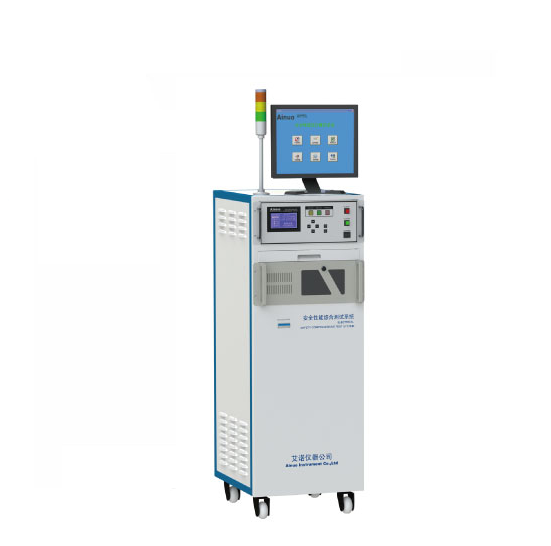

Ainuo AN9651S(F) Electrical Safety Comprehensive tester (Built-in AC power supply (5KW), PC, ESRS softwave)

1) AC Hipot test
Booster rated output capacity: 500VA（5000V/100mA）
Booster maximum short-circuit current: >200mA
Output waveform: Sine wave
Output voltage setting: 500～5000V ± 3%
Frequency setting: 50Hz/60Hz ±0.1%
Current upper-limit: 0.10～99.99mA
Current lower-limit: 0.00～10.00mA
Compensation current : 0.00～10.00mA
Time setting: 1～999s
2) Insulation Resistance test
Rated output capacity: 2VA（1000V/2mA）
Output voltage setting: DC 500Vor1000V
Resistance upper-limit range: 0.0～99.9 MΩ，100～2000MΩ
Resistance lower-limit range: 0.3～99.9 MΩ, 100～2000MΩ
Insulation resistance measurement: 0.0～99.9 MΩ, 100～2000 MΩ
3) Ground Bond Resistance test
Output current setting: 3～30A
Current frequency setting: Sine waveform 50Hz/60Hz
4) Leakage Current test
Current upper-limit range: 0.050～9.999mA
Current lower-limit: 0.000～5.000mA
Leakage current compensation setting: 0.000～1.000mA
Leakage current measurement: 0.050～9.999mA
Output voltage measurement: 60～280V
Dimension (WxHxD): 483x600x1355
Gross weight: 80 kg

Product Detail

Main features
* Comply with CCC,IEC EN,VED,BS,UL,JIS standard requiements.
* Latest international standard:500VA AC Hipot capacity(AC 5KV/100mA),short-circuit output current exceeds 200mA.Built-in optional leakage current test network MD card,meeting requirements of different industrial standards Maximum test current of Ground Bond resistance is up to 64A
*6 in 1:AC Hipot,Insulation Resistance,Ground Bond resistance,Leakage Current,Running Power,Low-Voltage Start.
Standby power consumption is optional for AN9651F(F)and AN9651S(F),minimum is low to 0.50w,accuracy is 0.2%
* Simple operation:LED backlit screen display.menu operation,Chiense/English langues,socket test fixture.
* Flexible configuration:Built in isolated transformer,AC frequency conversion power supply,frequency conversion power supply and industrial PC combiantion

* Satisfy lattest requirements:Follow the production line developing trends of comprehensive,fast,automation and information.Satisfy quality management,5s management and refid management requirements.
