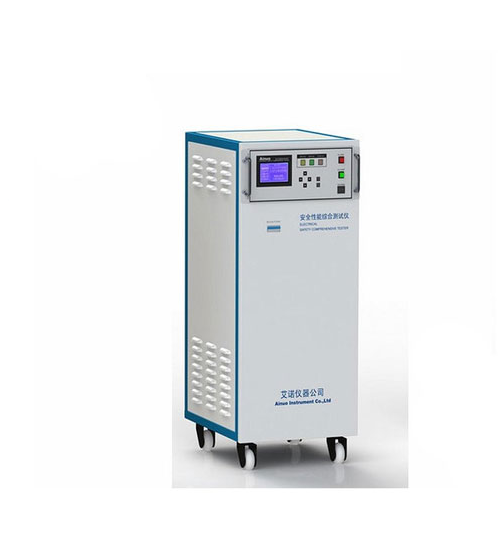

Ainuo AN9651B(F) Electrical Safety Comprehensive tester (Built-in insolate transformer 6KW)

Name: Ainuo AN9651B(F) Electrical Safety Comprehensive tester (Built-in insolate transformer 6KW)
Brand: Ainuo

ຜູ້ຜະລິດAinuo(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelAN9651B(F)

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

1) AC Hipot test
Booster rated output capacity: 500VA（5000V/100mA）
Booster maximum short-circuit current: >200mA
Output waveform: Sine wave
Output voltage setting: 500～5000V ± 3%
Frequency setting: 50Hz/60Hz ±0.1%
Current upper-limit: 0.10～99.99mA
Current lower-limit: 0.00～10.00mA
Compensation current : 0.00～10.00mA
Time setting: 1～999s
2) Insulation Resistance test
Rated output capacity: 2VA（1000V/2mA）
Output voltage setting: DC 500Vor1000V
Resistance upper-limit range: 0.0～99.9 MΩ，100～2000MΩ
Resistance lower-limit range: 0.3～99.9 MΩ, 100～2000MΩ
Insulation resistance measurement: 0.0～99.9 MΩ, 100～2000 MΩ
3) Ground Bond Resistance test
Output current setting: 3～30A
Current frequency setting: Sine waveform 50Hz/60Hz
4) Leakage Current test
Current upper-limit range: 0.050～9.999mA
Current lower-limit: 0.000～5.000mA
Leakage current compensation setting: 0.000～1.000mA
Leakage current measurement: 0.050～9.999mA
Output voltage measurement: 60～280V
Dimension (WxHxD): 483x600x1355

Grossweight:80kg

Product Detail

Main features
* Comply with CCC,IEC EN,VED,BS,UL,JIS standard requiements.
* Latest international standard:500VA AC Hipot capacity(AC 5KV/100mA),short-circuit output current exceeds 200mA.Built-in optional leakage current test network MD card,meeting requirements of different industrial standards Maximum test current of Ground Bond resistance is up to 64A
*6 in 1:AC Hipot,Insulation Resistance,Ground Bond resistance,Leakage Current,Running Power,Low-Voltage Start.
Standby power consumption is optional for AN9651F(F)and AN9651S(F),minimum is low to 0.50w,accuracy is 0.2%
* Simple operation:LED backlit screen display.menu operation,Chiense/English langues,socket test fixture.
* Flexible configuration:Built in isolated transformer,AC frequency conversion power supply,frequency conversion power supply and industrial PC combiantion

* Satisfy lattest requirements:Follow the production line developing trends of comprehensive,fast,automation and information.Satisfy quality management,5s management and refid management requirements.

AC Hipot test
Booster rated output capacity		500VA（5000V/100mA）
Booster maximum short-circuit current		>200mA
Output waveform		Sine wave, <3%（pure resistance，5000V/1mA），<3%（From empty load to full load）
Output waveform
Output voltage setting	Range	500～5000V
	Resolution	5V
	Accuracy	±（3%×setting+10V）
Frequency setting	Range	50Hz/60Hz
Frequency setting	Accuracy	±0.1%×setting
Alarming limits setting	Current upper-limit	0.10～99.99mA
Alarming limits setting	Current lower-limit	0.00～10.00mA
Compensation current setting	Range	0.00～10.00mA, automatic testing, compensation can be set to ON/OFF
Time setting	Range	1～999s
	Ramp up time range	1～100s
	Accuracy	±（0.1%×setting+1count）
Breakdown current alarm	Range	0.10～99.99mA
Breakdown current alarm	Accuracy	±（3%×reading+3counts）
Insulation Resistance test
Rated output capacity		2VA（1000V/2mA）
Output voltage regulation		<3%（From no load to full load）
Output voltage ripple		<1%
Output voltage setting	Range	DC 500Vor1000V
Output voltage setting	Accuracy	±（3%×setting+3counts）
Alarming limits setting	Resistance upper-limit range	0.0～99.9 MΩ，100～2000MΩ（If upper-limit is set to 0, it will not make adjudgment for upper limit）
Alarming limits setting	Resistance lower-limit range	0.3～99.9 MΩ, 100～2000MΩ
Time setting	Range	1～999s
Time setting	Accuracy	±（0.1%×setting+1count）
Insulation resistance measurement	Range	0.0～99.9 MΩ, 100～2000 MΩ
	Accuracy	≤200MΩ: ±（3%×reading+3counts）
	Accuracy	＞200MΩ:±（8%×reading+8counts）
Ground Bond Resistance test
No load output voltage		<12v span="">
Output current setting	Range	3～30A
	Accuracy	±（3%×setting+0.2A）
	Current range instruction	Optional: 3 ~ 64A test current
Current frequency setting	Range	Sine waveform 50Hz/60Hz
Current frequency setting	Accuracy	±0.1%×setting
Test time setting	Range	1～999s
Test time setting	Accuracy	±（0.1%×setting+1count）
Result display mode		Ground resistance or voltage
Ground resistance display mode
Alarming limits setting	Resistance upper-limit range	3A≤output current≤10A:10～600 mΩ


	Resistance lower-limit range	0～100 mΩ
Compensation resistance setting	Range	0～200 mΩ, automatic testing, compensation can be set to ON/OFF
Ground bond resistance measurement	Range	10～600 mΩ
Ground bond resistance measurement	Accuracy	±（3%×reading+
