Ainuo AN9640A(F) Electrical Safety Comprehensive tester （5000V/100mA, start test）

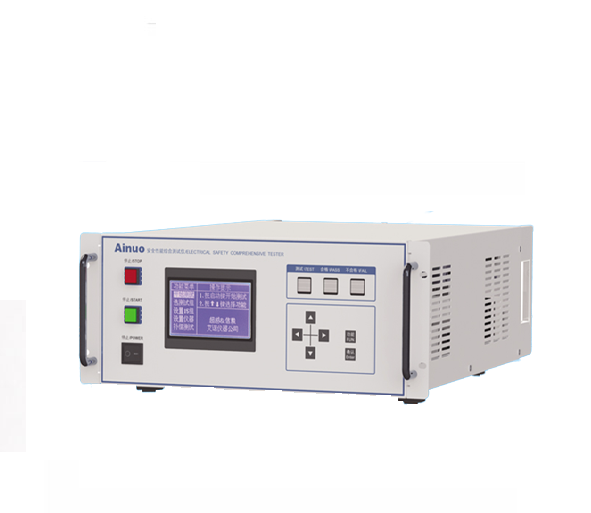

Name: Ainuo AN9640A(F) Electrical Safety Comprehensive tester （5000V/100mA, start test）
Brand: Ainuo

ຜູ້ຜະລິດAinuo(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelAN9640A(F)

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

1) AC Hipot test
Booster rated output capacity: 500VA（5000V/100mA）
Booster maximum short-circuit current: >200mA
Output waveform: Sine wave
Frequency setting: 50Hz/60Hz
Current upper-limit: 0.10～99.99mA
Current lower-limit: 0.00～10.00mA
Time setting: 1～999s
2)Insulation Resistance test
Rated output capacity: 2VA（1000V/2mA）
Output voltage setting: DC 500V or 1000V
Resistance upper-limit range: 0.0～99.9 MΩ，100～2000MΩ
Resistance lower-limit range: 0.3～99.9 MΩ, 100～2000MΩ
Insulation resistance measurement: 0.0～99.9 MΩ, 100～2000 MΩ
3) Ground Bond Resistance test
Output current setting: 3～30A
Current frequency setting: Sine waveform 50Hz/60Hz
Dimension: 426(W)x 178(H)x 600(D)
Gross weight: 50 kg

Product Detail

Main features
* Fullfill Latest international standard:500VA AC Hipot capacity(AC 5KV/100mA),short-circuit output current up to 200mA,Built-in optional leakage current test network MD card,meeting requirements of different industrial standards,Maximum test current of ground bond is up to 64A,optionalground bond resistance or voltagte test mode. Comply with CCC,IEC,EN,VDE,BS,UL,JIS standard requirements.
*Up to 6 functions:AC Hipot,insulation resistance,Ground Bond,leakage current,runing power,low-voltage start,flexibly configured for different models.
* Intelligent operation:15 groups of test memories,7-step programming for each guoup,button start.External programmable power supply,auto-comfiguration of power voltage/frequency for the DUT(Device under test).
*Auto control:standard RS232,Optional RS485/GPIB/LAN interface,AN97 power supply interface,Remote interface,easily compose automation system.
* Infomation management:optional software(ESRS),realizing test process and data management,improving product quality and production management level.
*Simplified operation:LED backlit screen display,menu operation,Chinese/English,socket test fixture.
Order information and extended functions
* AN694A(F):6 in 1,external AN97 series power supply is required for leakage/power/start test,Safety capacity 500VA
*AN9640B(F):5 in 1,external AN97 series power supply is required for leakage,power test.
eakage/power/start test,Safety capacity 500VA
*AN9640B(F):5 in 1,external AN97 series power supply is required for leakage,power test.

Spec.

AC Hipot test
Booster rated output capacity	AN9640A(F)	500VA（5000V/100mA）1
Booster rated output capacity	AN9640B(F)	100VA（5000V/20mA）
Booster maximum short-circuit current		>200mA
Output waveform		Sine wave, <3%（pure resistance，5000V/1mA），<3%（From empty load to full load）
distortion and regulation
Output voltage setting	Range	500～5000V
	Resolution	5V
	Accuracy	±（3%×setting+10V）
Frequency setting	Range	50Hz/60Hz
Frequency setting	Accuracy	±0.1%×setting
Alarming limits setting	Current upper-limit	0.10～99.99mA(20.00mA for AN9640B/C(F))
Alarming limits setting	Current lower-limit	0.00～10.00mA
Compensation current setting	Range	0.00～10.00mA, automatic testing, compensation can be set to ON/OFF
Time setting	Range	1～999s
	Ramp up time range	1～100s
	Accuracy	±（0.1%×setting+1count）
Breakdown current alarm	Range	0.10～99.99mA(20.00mA for AN9640B/C(F))
Breakdown current alarm	Accuracy	±（3%×reading+3counts）
Insulation Resistance test
Rated output capacity		2VA（1000V/2mA）
Output voltage regulation		<3%（From no load to full load）
Output voltage ripple		<1%
Output voltage setting	Range	DC 500Vor1000V
Output voltage setting	Accuracy	±（3%×setting+3counts）
Alarming limits setting	Resistance upper-limit range	0.0～99.9 MΩ，100～2000MΩ（If upper-limit is set to 0, it will not make adjudgment for upper limit ）
Alarming limits setting	Resistance lower-limit range	0.3～99.9 MΩ, 100～2000MΩ
Time setting	Range	1～999s
Time setting	Accuracy	±（0.1%×setting+1count）
Insulation resistance measurement	Range	0.0～99.9 MΩ, 100～2000 MΩ
	Accuracy	≤200MΩ: ±（3%×reading+3counts）
	Accuracy	≤200MΩ: ±（3%×reading+3counts）
*Remarks：Except 500V and 1000V voltage points, other voltage accuracy are all 10%.* *Insulation resistance accuracy is under temperature 0～40℃ ， humidity 40℃/（20～75）% RH，otherwise the accuracy will change.*
Ground Bond Resistance test
No load output voltage		<12v span="">
Output current setting	Range	3～30A
Output current setting	Accuracy	±（3%×setting+0.2A）
Current frequency setting	Range	Sine waveform 50Hz/60Hz
Current frequency setting	Accuracy	±0.1%×setting
Test time setting	Range	1～999s
Test time setting	Accuracy	±（0.1%×setting+1count）
Result display mode		Ground resistance or voltage
Ground resistance display mode：
Alarming limits setting	Resistance upper-limit range	3A≤output current≤10A:10～600 mΩ
