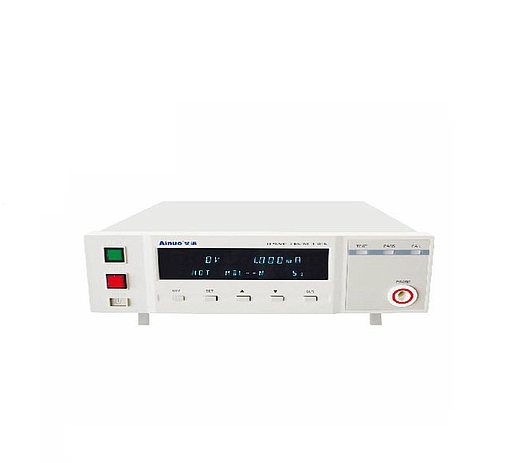

Ainuo AN9613X(F) Ground Bond Resistance tester (1～600mΩ)

1) AC Output
Current range/Reeolution/Accuracy: 5.0～30.0A ,0.1A, ±(3% of setting+5 counts)
Voltage: ＜12V
Frequency: 50Hz/60Hz ±100ppM
2) Parameter Setting
Resistance set rang/Resolution: 1～600mΩ(below 10A), 1～300 mΩ(10-25A) 1～200 Mω(above 25A) 1 mΩ/step
Voltage set rang/Resolution: 0.01～6.00V(below 10A),0.01～7.5V(10～25A) 0.01～600V(above 25A) 0.01V/step
Time set range/Resolution: 1.0～999.9s(LLL=continuous), 0.1s/step
3) Measuring Function
Measurement voltage: 0.01～3.00V, ±(3% of reading+5 counts)
Resistance range/Accruacy: 1～600 mΩ, ±(3% of reading+5 counts) 300～7.50V, ±(3% of reading)
Max rated load: 180VA
Current fluctuation: ≤1%
Interface function: RS232(RS485 optional),Remote control
Dimension(W×H×D): 320×110×400mm

Product Detail

Main features
* Latest international standard: Comply with CCC,IEC,EN,VDE,BS,UL,JIB standard requrements.
* Result can be shown as resistance or voltage to satisfy different industrial standard requirements
* Measurement current 5-30A,output frequency 50/60HZ
* Leakage current upper setting,intelligent judgment
* VFD display,simple operation

* Remote,RS232/485 interface
